VRayToon Render Element

This page provides details on the V-Ray Toon Render Element.

Overview

The V-Ray Toon Render Element renders the entire scene with the V-Ray Toon Render Effect and contains a mask for the toon outlines, although the toon color is not present in it. It also supports opacity set from the toon effect, presenting it as grayed outlines.

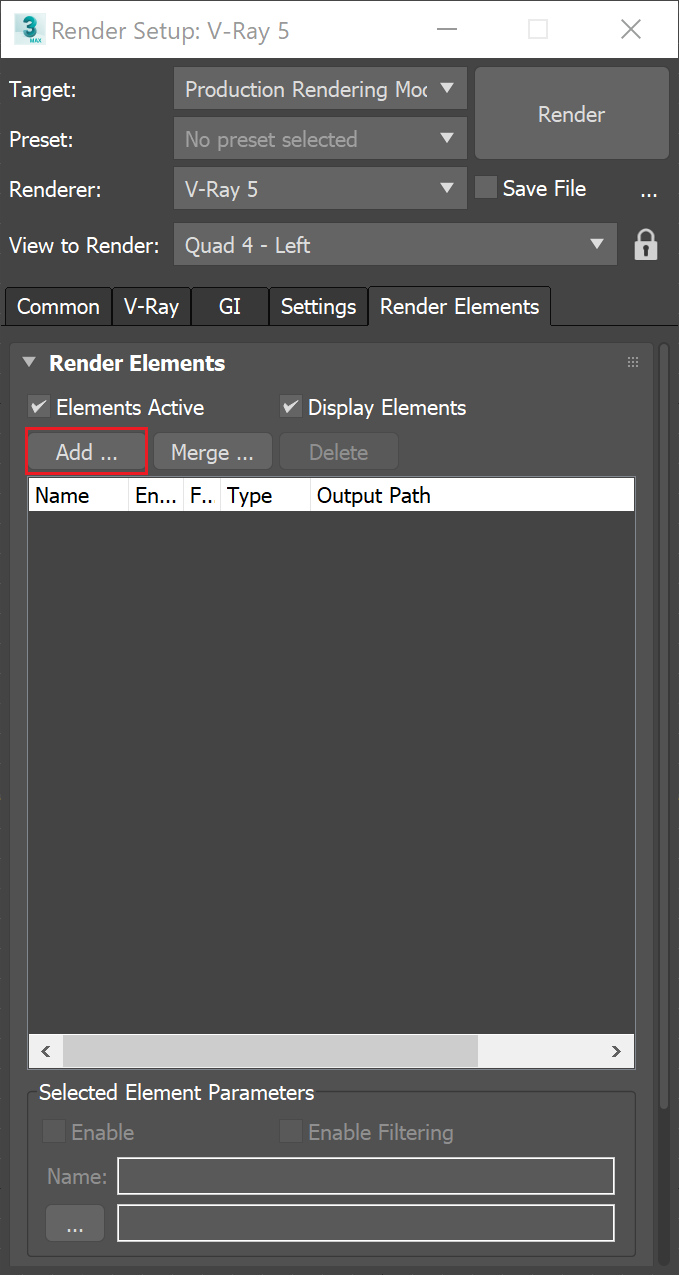

UI Path: ||Render Setup window|| > Render Elements tab > Add button > VRayToon

images/download/attachments/60100620/Max2020_VRay5_RenderElements_UIpath.png

images/download/attachments/60100620/VRay_Max_VRayToon_Hero2.png

Parameters

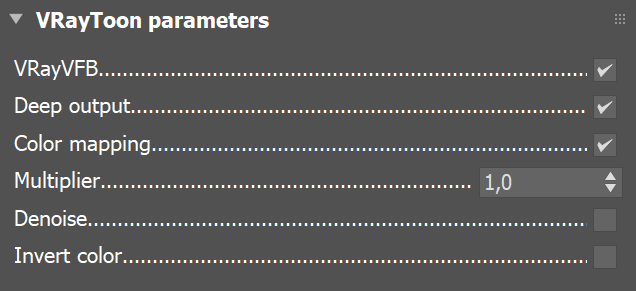

This render element is enabled through the Render Elements tab of the Render Setup window in 3ds Max and displays its parameters in a rollout at the bottom of the window:

VRayVFB – When enabled, the render element appears in the V-Ray Virtual Frame Buffer.

Deep output – Specifies whether to include this render element in deep images.

Color mapping Applies the color mapping options specified in the Color mapping rollout (Render Setup window > V-Ray tab) to this render element. This option is enabled by default.

Multiplier – Sets the overall intensity of the render element, where 1.0 is the standard multiplier.

Denoise – Specifies whether to denoise this render element.

Invert color – Inverts the black and white colors.

For the toon effect to be visible in the V-Ray Toon Render Element, the VRayToon Render Effect must be present and active.

images/download/attachments/60100620/Max2020_VRay5_VRayToon_parameters.png


Common Uses

The V-Ray Toon Render Element is useful for changing the appearance of a render in a compositing or image editing application. The VRayToon Render Element holds a mask for the toon outlines (the toon color is not present in it).
It has an option to invert its output so instead of white lines on a black background, we can get the opposite. It also supports opacity set from the toon effect.

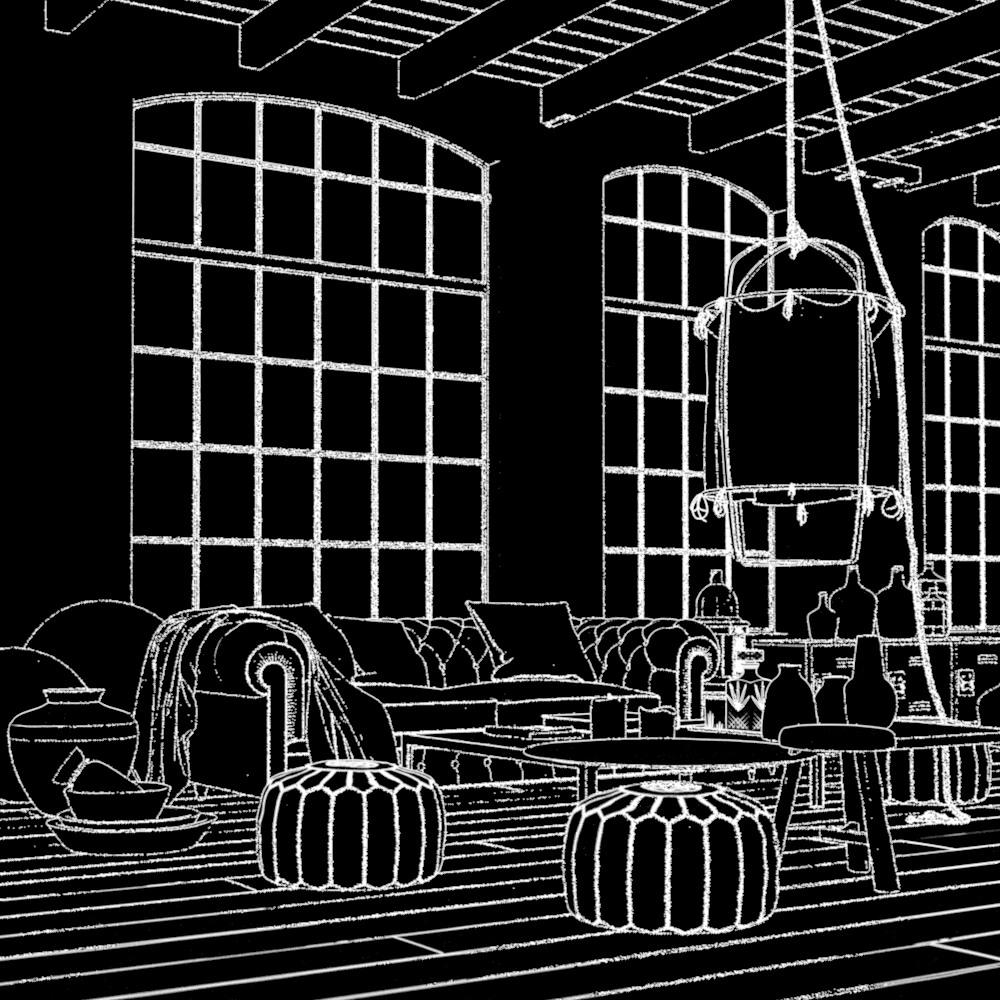

images/download/attachments/60100620/VRay_Max_VRayToon_Hero2.png
V-Ray Toon Render Element

images/download/attachments/60100620/VRay_Max_VRayToon_invertColor.png
V-Ray Toon Render Element with invert color enabled

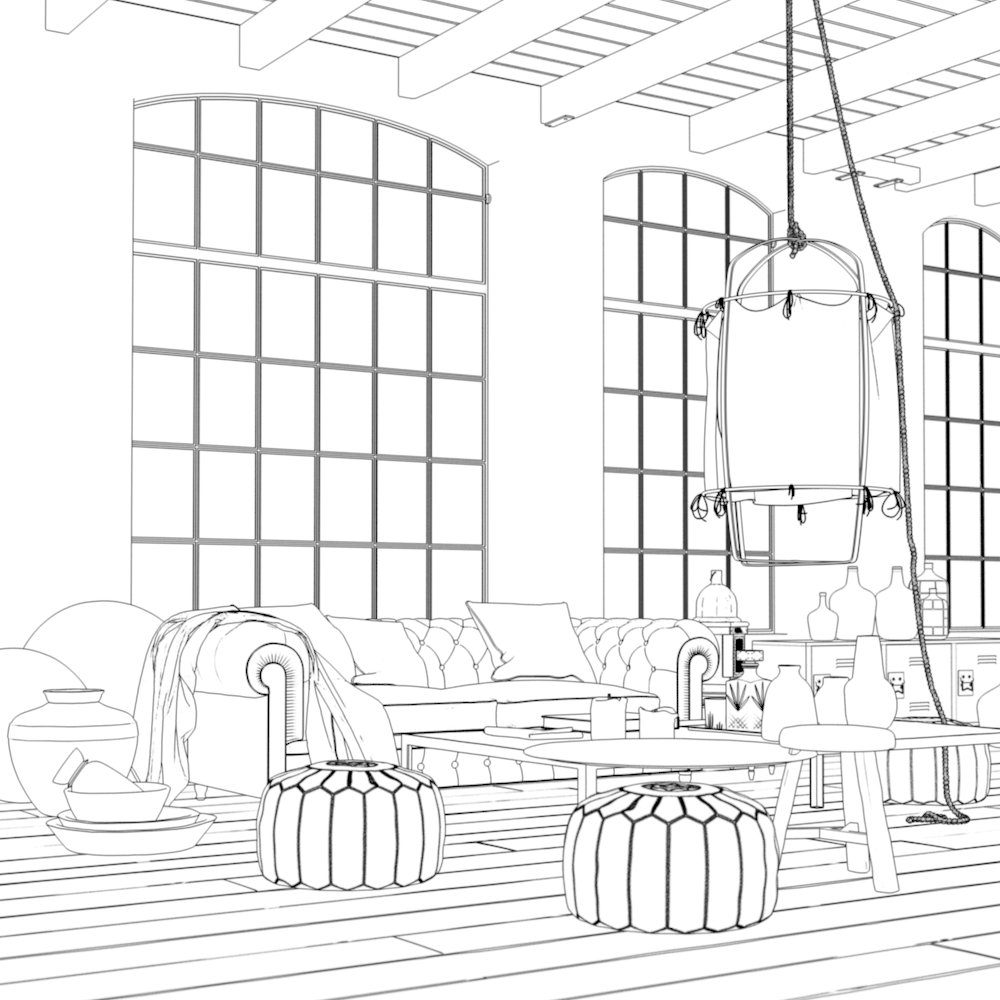

images/download/attachments/60100620/VRay_Max_VRayToon_VrayMaterials_AffectAll_Off.png
V-Ray Toon Render Element with Do reflections/refractions enabled in the VRayToon Render Effect and invert color enabled
(all V-Ray materials reflection and refraction have not been set to Affect All channels)

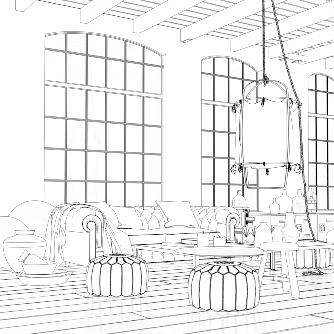

images/download/thumbnails/60100620/VRay_Max_VRayToon_VrayMaterials_AffectAll_On.png
V-Ray Toon Render Element with
Do reflections/refractions enabled in the VRayToon Render Effect and in vert color enabled
(all V-Ray materials reflection and refraction have been set to Affect All channels)

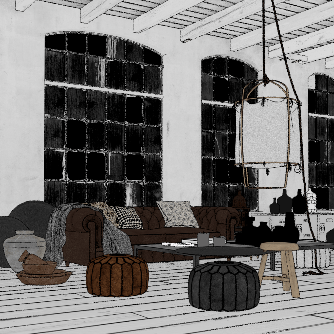

images/download/thumbnails/60100620/VRay_Max_VRayToon_Multiply.png
V-Ray Toon Render Element composited over the VRayDiffuseFilter render element while set to multiply in composite


Notes

  • For the toon effect to be visible in the V-Ray Toon Render Element, the VRayToon Render Effect must be present and active.

  • When the Do reflections/refractions option is enabled for the V-Ray Toon Effect, then in order for all reflected and refracted toon lines to be present in the render element, you need to set the V-Ray materials' reflection and refraction to Affect All channels. Lights must also be turned on within the scene or no reflections/refractions will be present in the render.
