V-Ray Light Lister

This page contains information on the V-Ray Light Lister window.

Overview

The V-Ray Light Lister window is a handy way to modify many common attributes of all of the lights in the scene, both V-Ray lights and standard 3ds Max lights.


UI Path: ||V-Ray Toolbar|| > V-Ray Light Lister icon

||V-Ray Toolbar|| > V-Ray Light Lister icon

images/download/thumbnails/60098575/Max2021_VRay5_NewVFB_Toolbar.png

||Tools menu||> V-Ray Light Lister

images/download/attachments/60098575/Max2020_VRay5_VRayLightLister_creation.gif

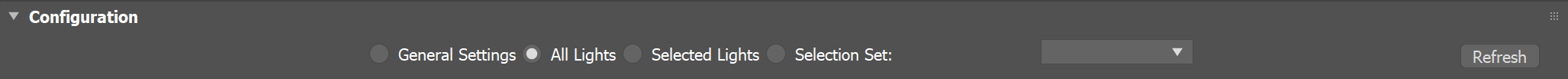

Configuration

images/download/attachments/60098575/Max2020_VRay5_LightLister_Configuration.png

General Settings – Displays more parameters to control standard 3ds Max Lights.

All Lights – Displays options for all lights in the scene.

Selected Lights – Displays parameters only for selected lights.

Selection Set – Displays parameters only for the lights in the selection set enabled in the dropdown menu.

Refresh – Updates the Light Lister's information. Use this option if you have added lights or made changes to lights outside the Light Lister.

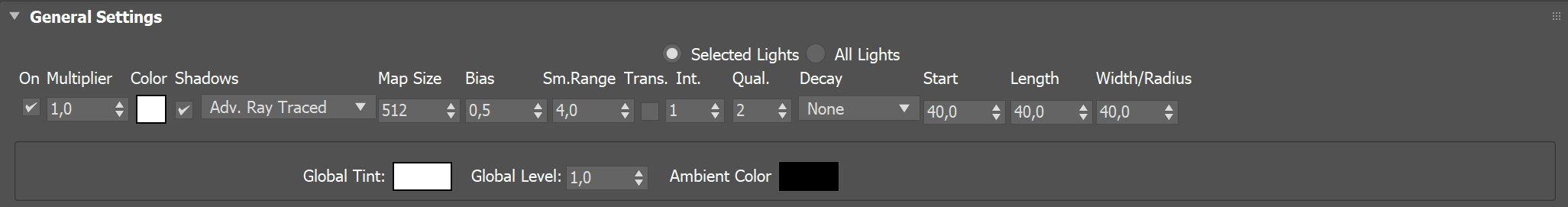

General Settings

images/download/attachments/60098575/Max2020_VRay5_LightLister_GeneralSettings.png

General Settings rollout controls common parameters specific to global lighting and standard 3ds Max lights.

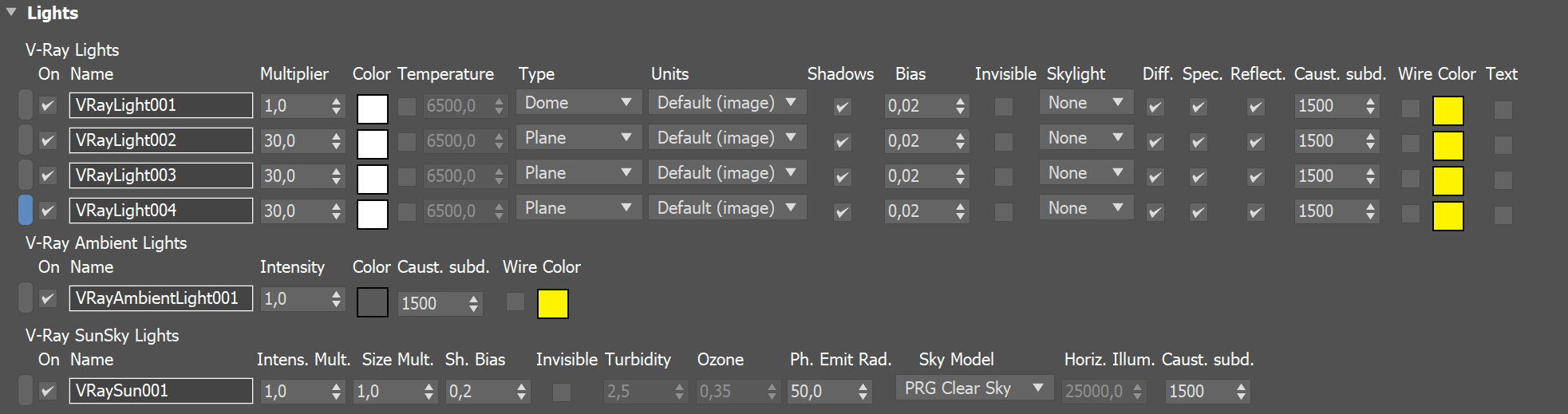

Light Settings

images/download/attachments/60098575/Max2020_VRay5_LightLister_Lights.png

The Lights Section controls common parameters for all lights in the scene.

Light Selection Box Click to select the light in the viewport.


Example: Light Instances

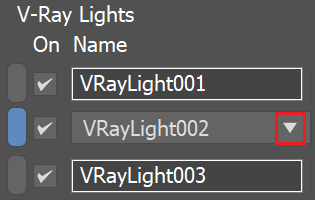

In the Light Lister, instanced lights appear as a single entry with a dropdown. Editing any parameters for the entry affects all instances.

images/download/attachments/60098575/Max2020_VRay5_LightLister_OpenList.png
Changing the Intensity of all instances

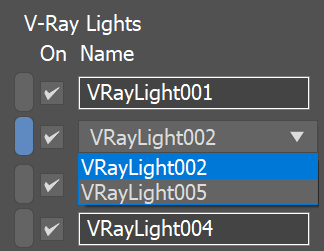

The dropdown can be used to select a specific instance in the viewport.

images/download/attachments/60098575/Max2020_VRay5_LightLister_SelectFromList.png
Selecting an instanced light
