Color Management

This page provides information on the Color management rollout in the Settings tab.

Overview

The Color Management rollout allows you to switch between sRGB and ACEScg workflow. The ACEScg is a linear color working space that specifies a wider gamut of colors than the sRGB linear gamut. It allows for a greater range of colors transformations in post as its gamut envelopes not only sRGB, but also P3, Rec709, and Rec2020. Archived assets in ACEScg do not need to be remastered in case the displays standards are improved in future.

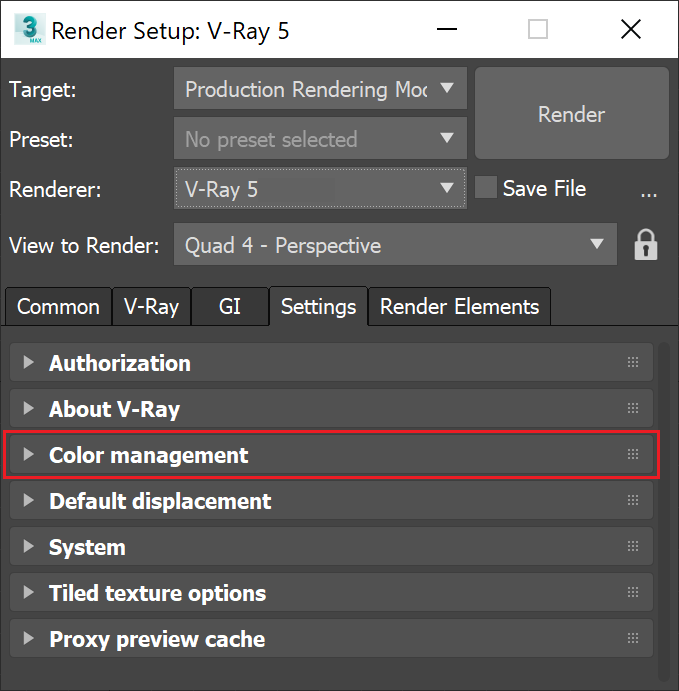

UI Path: ||Render Setup window|| > Settings tab > Color management rollout

images/download/attachments/62442017/Max2020_VRay5_ColorManagement_UIpath.png

Parameters

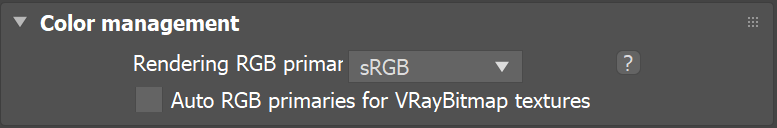

Rendering RGB primaries – Selects a display color space for the rendered image. The selected mode is saved as metadata to vrimg. The color space used in the render also affects how the rendered image is displayed in VFB2 when the default Display correction sRGB is set in VFB2.

sRGB – Image is rendered in sRGB color space. This is the color space for most monitors and computer displays.
ACEScg – Image is rendered in ACEScg color space. This color space allows for greater range of color transformations in post. It has a wider gamut of colors than the sRGB linear gamut and should be encoded into a 16 bit floating exr.

Auto RGB primaries for VRayBitmap textures When enabled, automatically sets RGB primaries for the VRayBitmap texture.

images/download/attachments/62442017/max2022_52001_Settings_ColorManagement.png
