Lens Effects Filter Generator

This page provides information on the standalone Lens Effects Filter Generator that is included with V-Ray for 3ds Max.

Overview

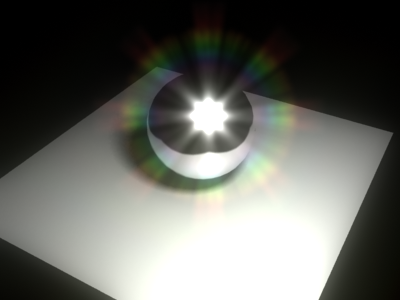

The Filter generator is a simple tool for composing filters (HDR images in *.hdr format). It is specially designed to produce filters for the Lens Effects render effect.

images/download/attachments/60101214/FilterGen_1.png

Installation

The Lens Effects Filter Generator tool is installed along with V-Ray for 3ds Max and can be found through Start Menu > Programs > V-Ray for 3ds Max > Tools > Filter generator tool.

Start the filter_generator executable from C:\Program Files\Chaos Group\V-Ray\3ds Max 20##\bin


File Options

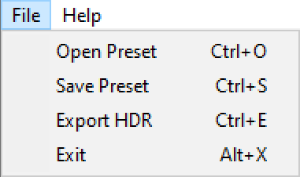

images/download/thumbnails/38580031/LensEffectsUI_FileMenu_V01.png

The file menu shows options for saving and loading presets and exporting the final filter kernel.

Radial Symmetric Pattern Parameters

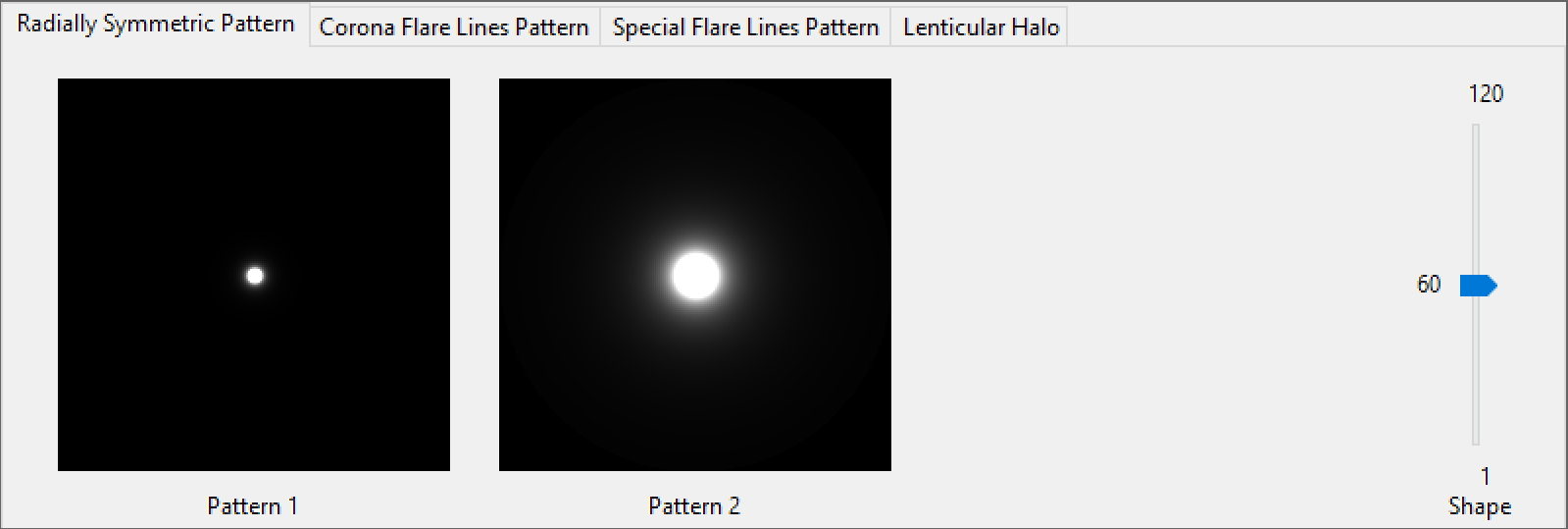

images/download/attachments/38580031/LensEffectsUI_RadialSymmetricPattern_V01.png

The Radial Symmetric Pattern parameters control the scale of the overall Lens Filter.

Shape – Adjusts the size of the pattern.

Corona Flare Lines Pattern Parameters

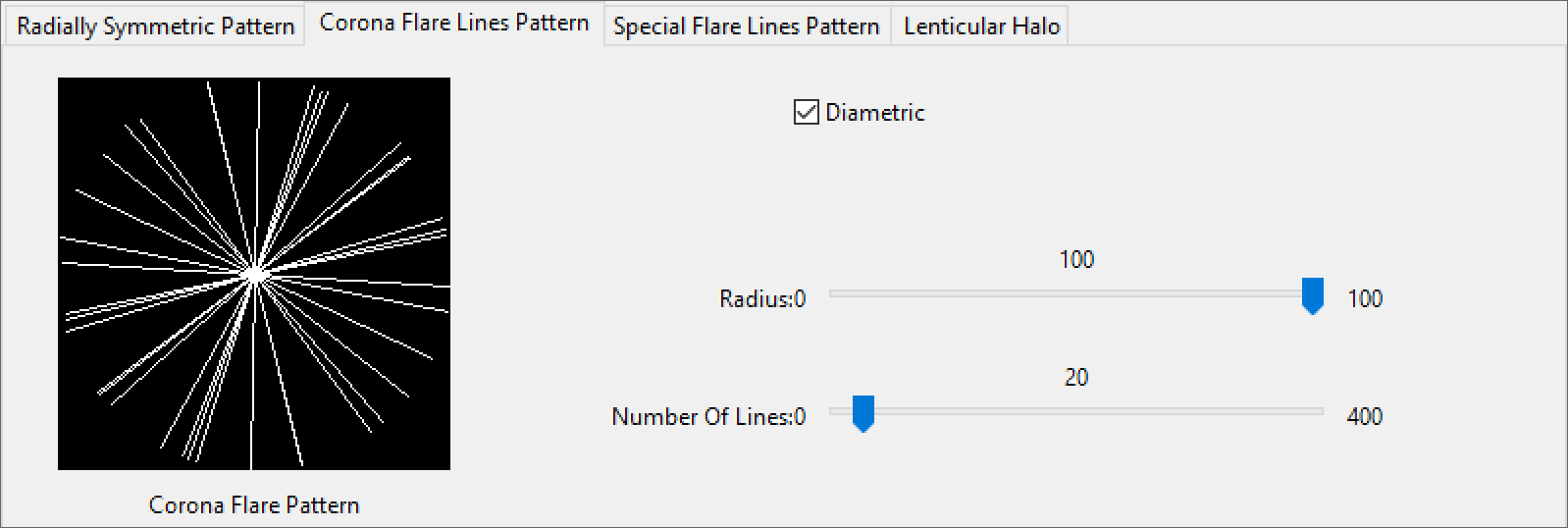

images/download/attachments/38580031/LensEffectsUI_CoronaFlareLinesPatern_V02.png

The Corona Flare Pattern parameters control the amount of rays emanating from the source of light.

Diametric – When enabled, mirrors the pattern across the center.

Radius – Controls the size of the pattern radius.

Number Of Lines – Controls the number of lines in the pattern.

Click here to expand the Corona Flare Lines Pattern Example

This example demonstrates how different values of the Number of Lines parameter affect the lens effect. Increasing the Number of Lines value produces more rays emanating from the light source, while decreasing it lowers the amount of rays.

The last image also has the Diametric parameter enabled, which mirrors the rays pattern across the center (thus, producing symmetrical flares).

images/download/attachments/38580031/Corona_Flare_Line_Pattern_Lines_100_Diametric_off.png

Number Of Lines = 100, Diametric is off

images/download/attachments/38580031/Corona_Flare_Line_Pattern_Lines_20_Diametric_off.png

Number Of Lines = 20, Diametric is off

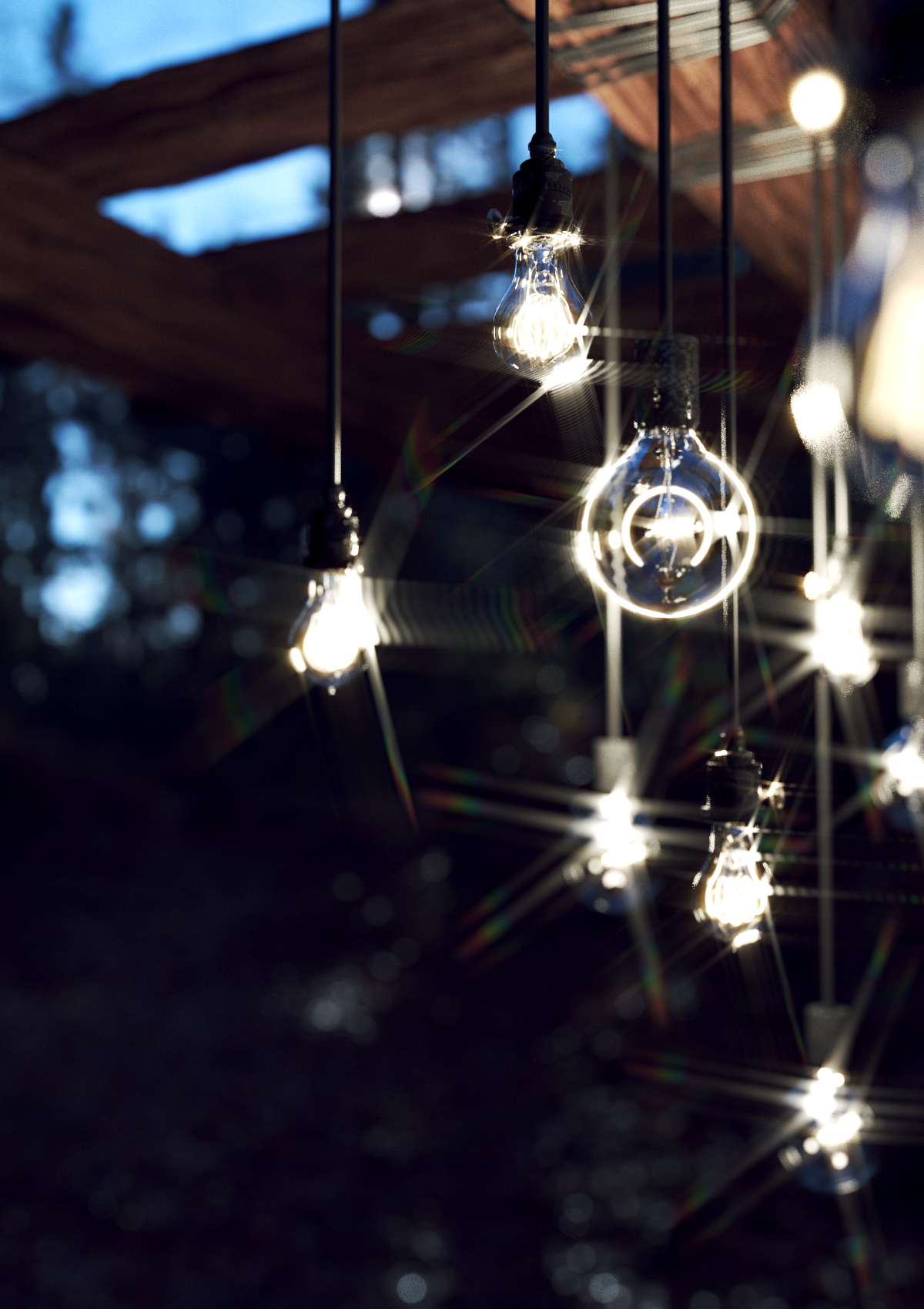

images/download/attachments/38580031/Corona_Flare_Line_Pattern_Lines_5_Diametric_off.png

Number Of Lines = 5, Diametric is off

images/download/attachments/38580031/Corona_Flare_Line_Pattern_Lines_5_Diametric_on.png

Number Of Lines = 5, Diametric is on

Special Flare Lines Pattern Parameters

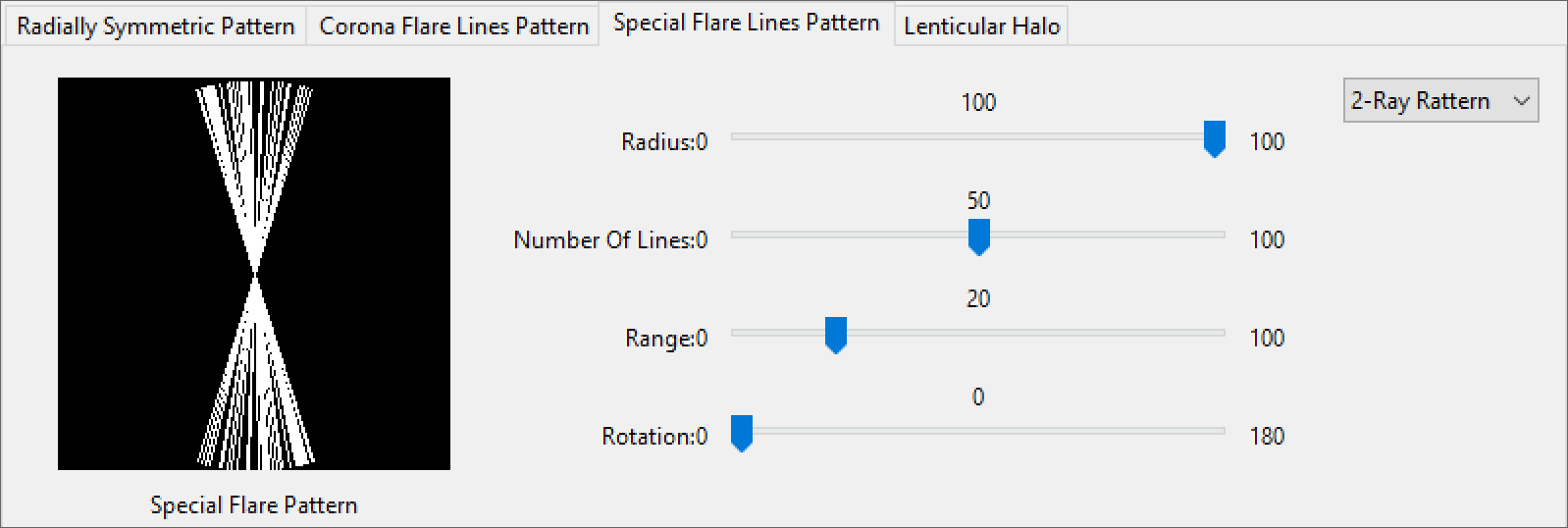

images/download/attachments/38580031/LensEffectsUI_SpecialFlareLinesPatern_V02.png

The Special Flare Pattern parameters control the pattern of the Special Flares Lines.

Ray Pattern Dropdown – Determines the number of Ray groups.

Radius – Scale of the Special Flares Lines Lens kernel in Percent.

Number of Lines – Determines the amount of lines used in each ray pattern.

Range – Controls the spread of the Ray Pattern.

Rotation – Rotates the entire Special Flare Lines Pattern in degrees.

Click here to expand the Special Flare Lines Pattern Example

This example shows the effect of Range and Ray Pattern parameters on the lens appearance. The Number of Lines is set to 10 for all images.

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_10_Rays_2.png

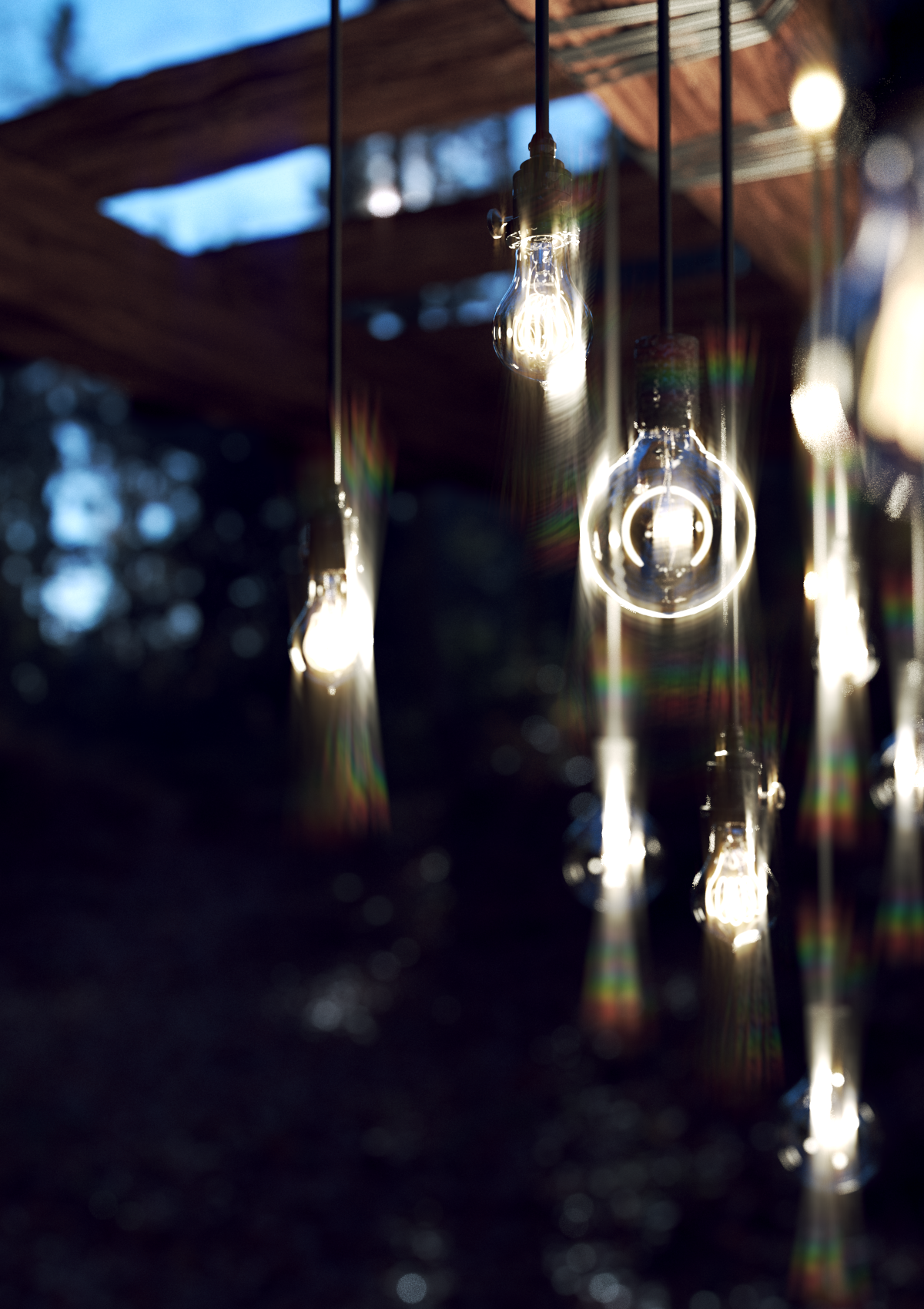

Number of Lines = 10, Range = 10, Ray Pattern = 2

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_10_Rays_4.png

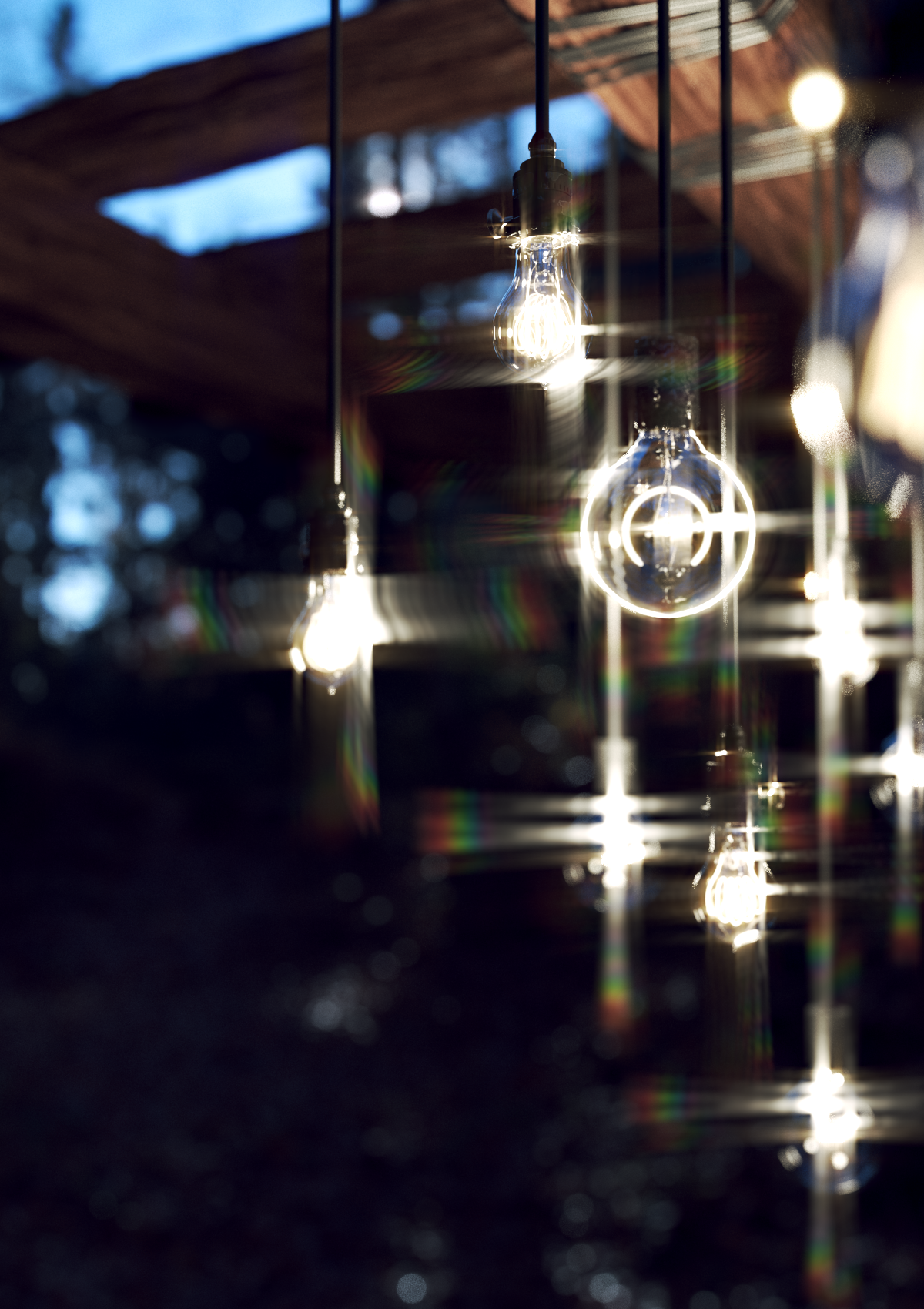

Number of Lines = 10, Range = 10, Ray Pattern = 4

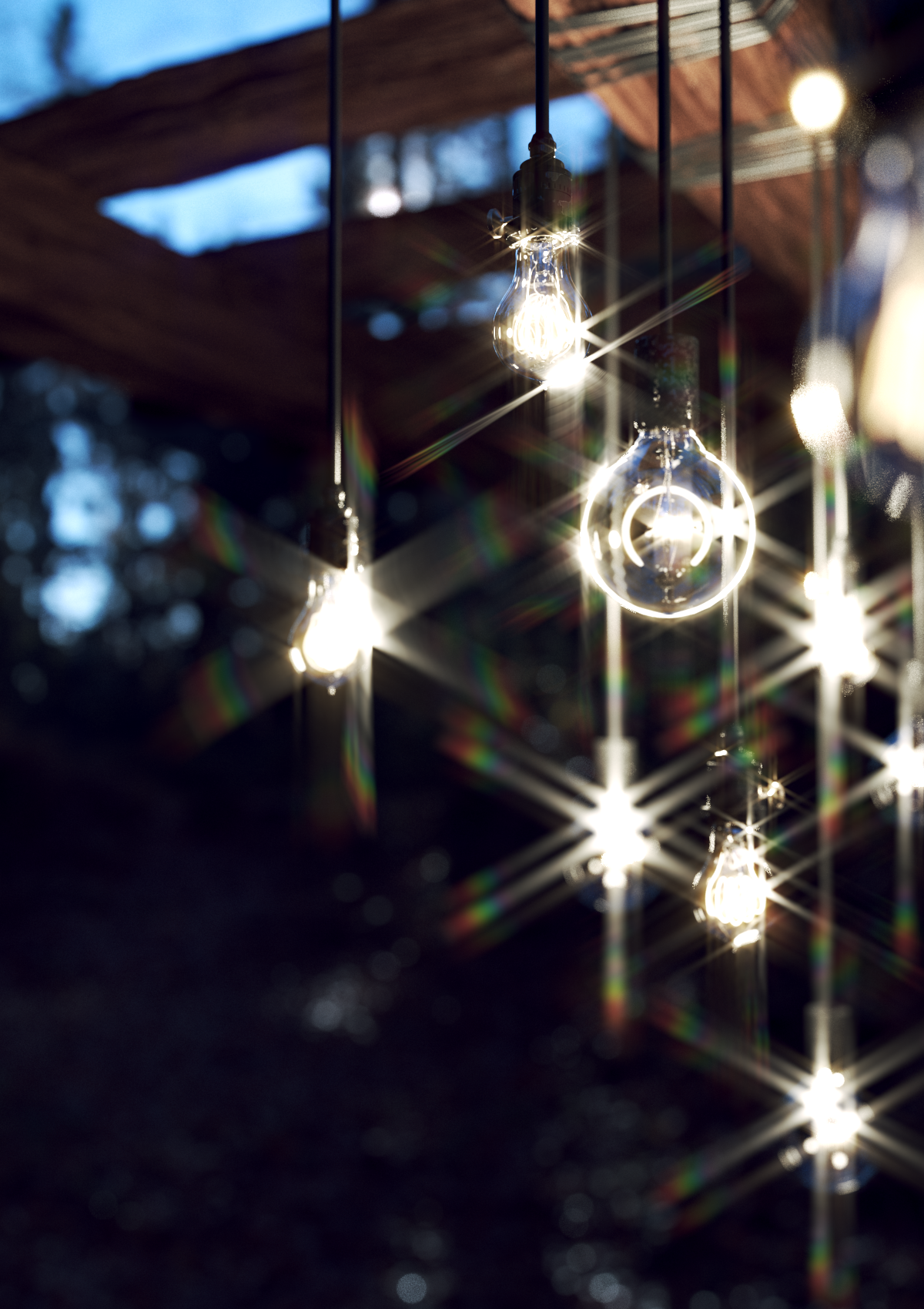

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_10_Rays_6.png

Number of Lines = 10, Range = 10, Ray Pattern = 6

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_10_Rays_8.png

Number of Lines = 10, Range = 10, Ray Pattern = 8

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_40_Rays_2.png

Number of Lines = 10, Range = 40, Ray Pattern = 2

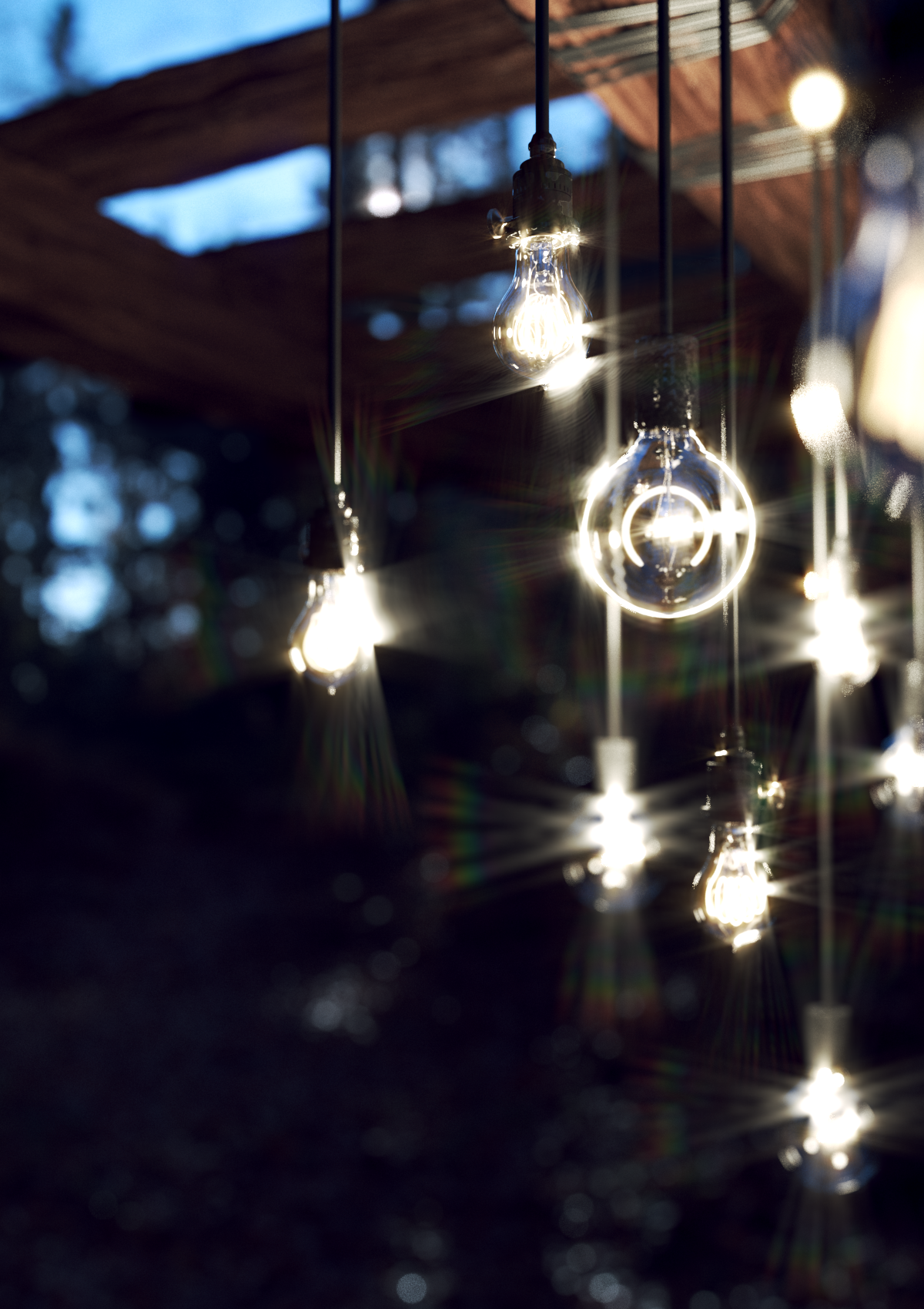

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_40_Rays_4.png

Number of Lines = 10, Range = 40, Ray Pattern = 4

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_40_Rays_6.png

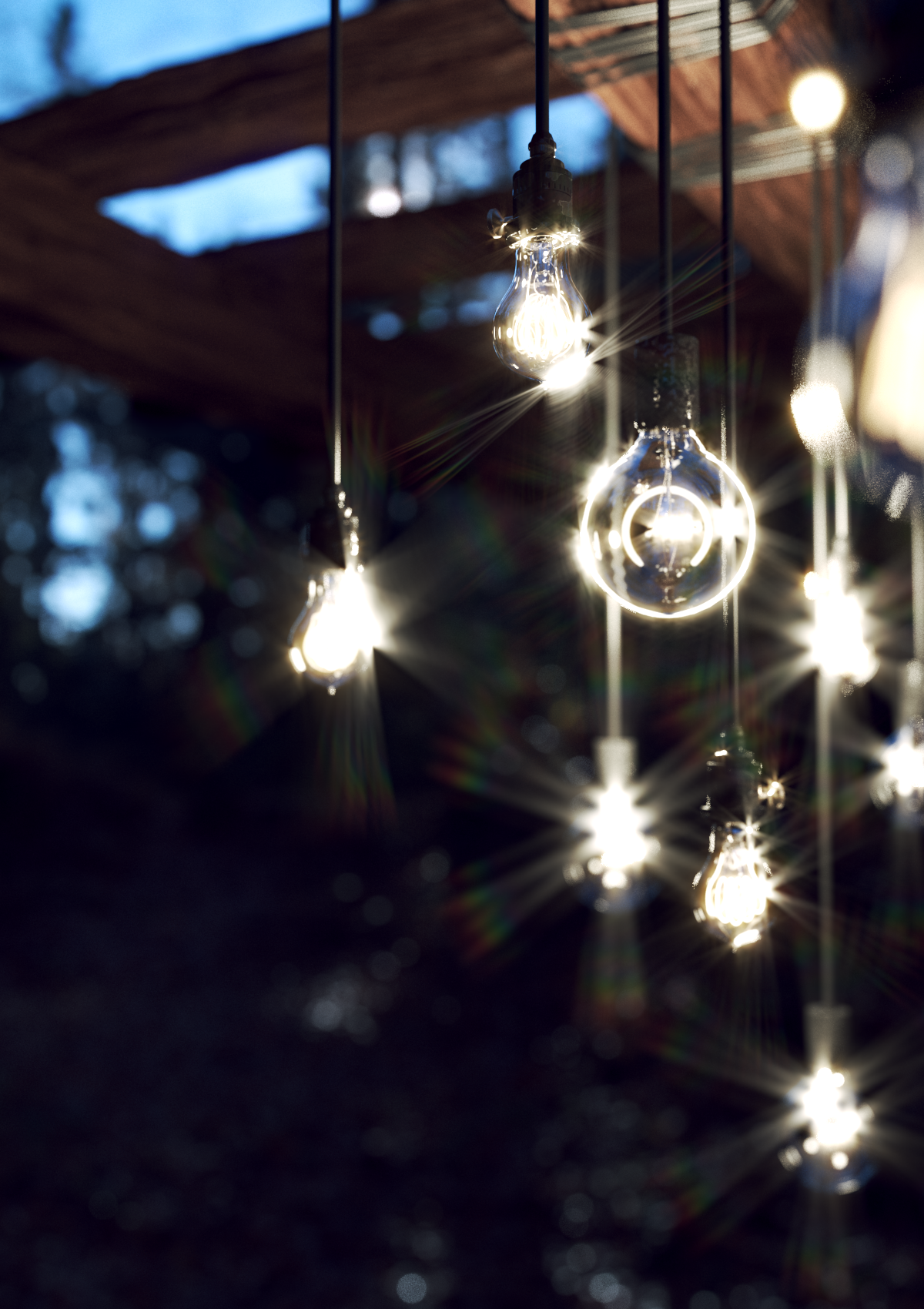

Number of Lines = 10, Range = 40, Ray Pattern = 6

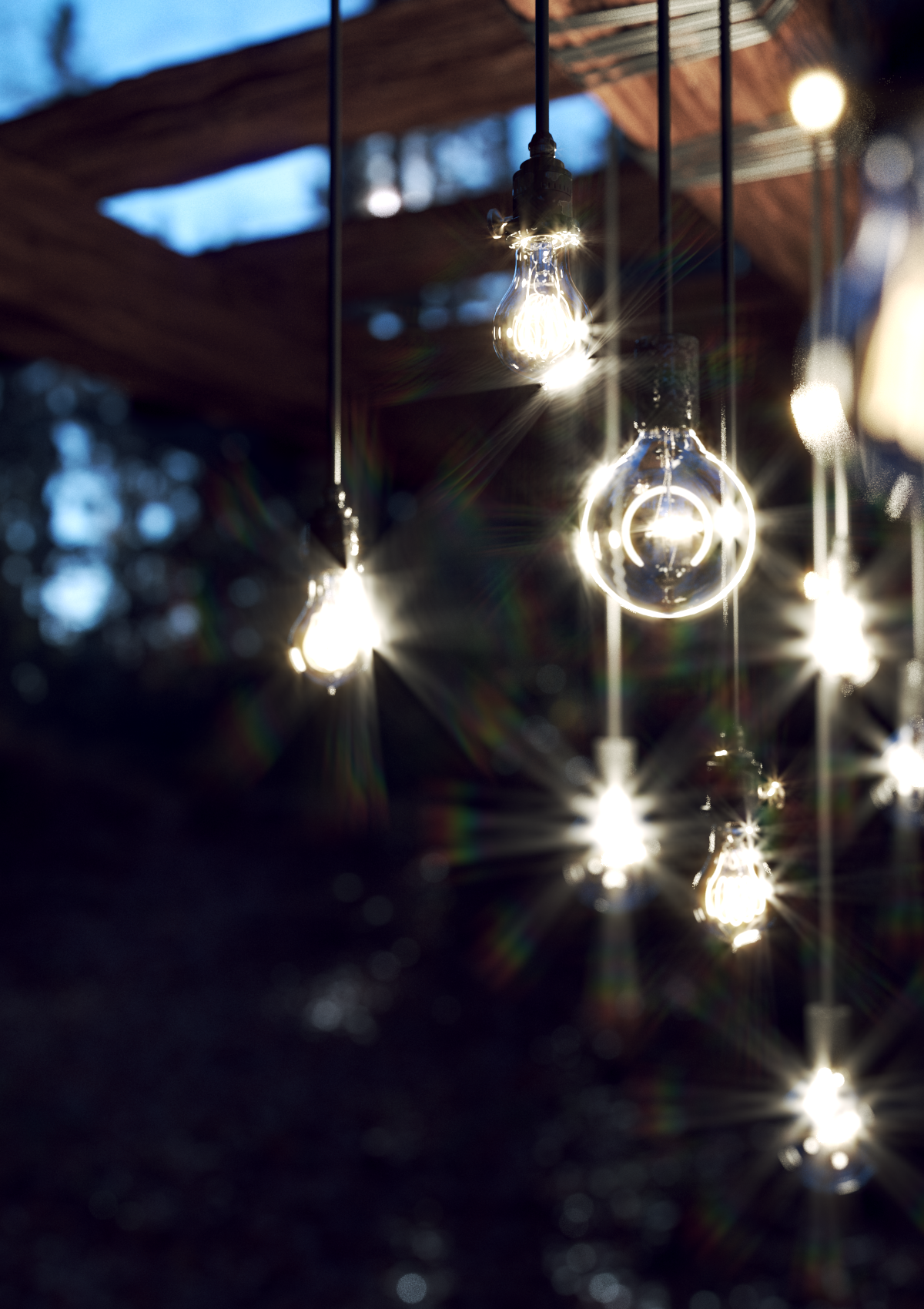

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_40_Rays_8.png

Number of Lines = 10, Range = 40, Ray Pattern = 8

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_80_Rays_2.png

Number of Lines = 10, Range = 80, Ray Pattern = 2

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_80_Rays_4.png

Number of Lines = 10, Range = 80, Ray Pattern = 4

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_80_Rays_6.png

Number of Lines = 10, Range = 80, Ray Pattern = 6

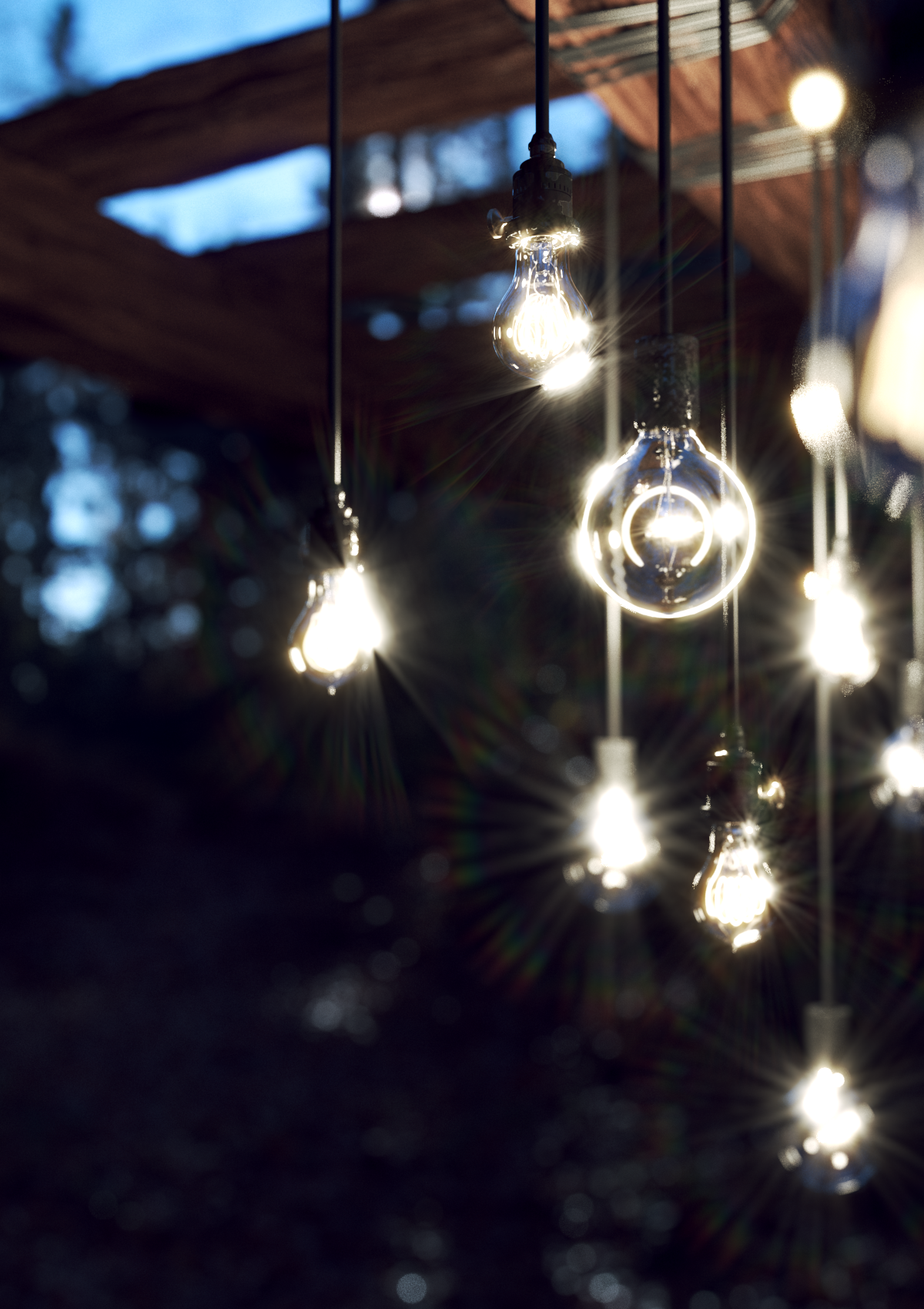

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_80_Rays_8.png

Number of Lines = 10, Range = 80, Ray Pattern = 8

Lenticular Halo Parameters

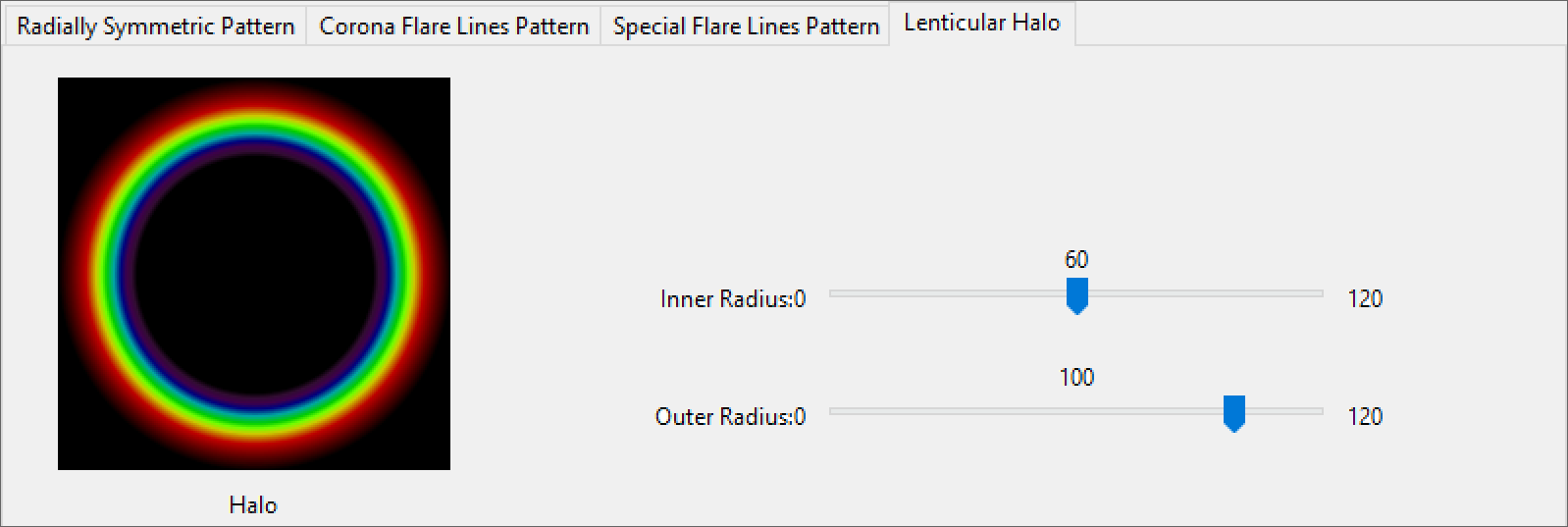

images/download/attachments/38580031/LensEffectsUI_LenticularHalo_V02.png

The Lenticular Halo parameters control the bounds of the halo.

Inner Radius – Sets the inner bounds of the Lenticular Halo

Outer Radius – Sets the outer bounds of the Lenticular Halo.

Click here to expand the Lenticular Halo Example

This example shows how changing the inner and outer bounds values affects the Lenticular Halo.

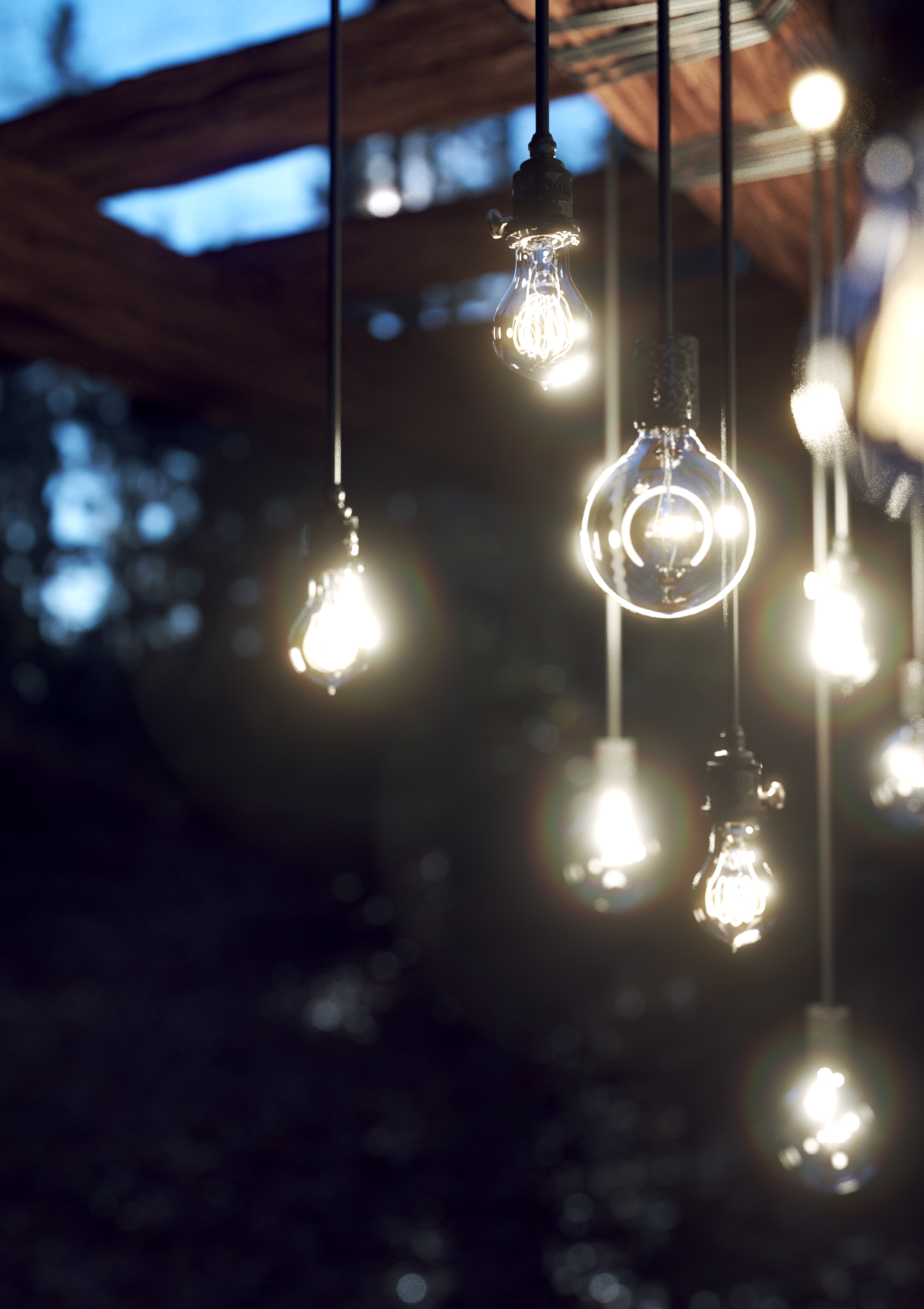

images/download/attachments/38580031/Lenticular_Halo_OuterR_40_InnerR_20.png

Inner Radius = 20, Outer Radius = 40

images/download/attachments/38580031/Lenticular_Halo_OuterR_60_InnerR_20.png

Inner Radius = 20, Outer Radius = 60

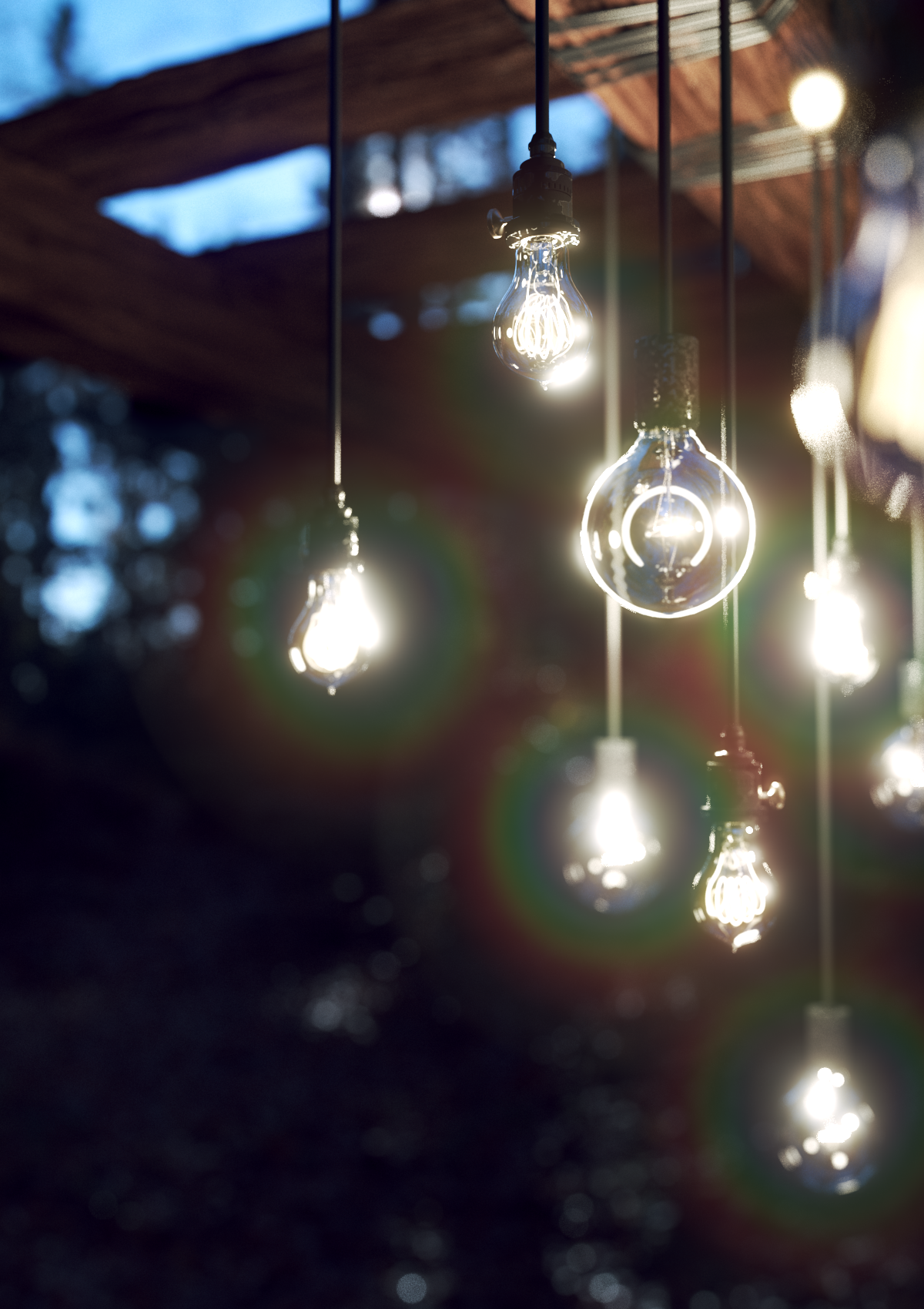

images/download/attachments/38580031/Lenticular_Halo_OuterR_80_InnerR_20.png

Inner Radius = 20, Outer Radius = 80

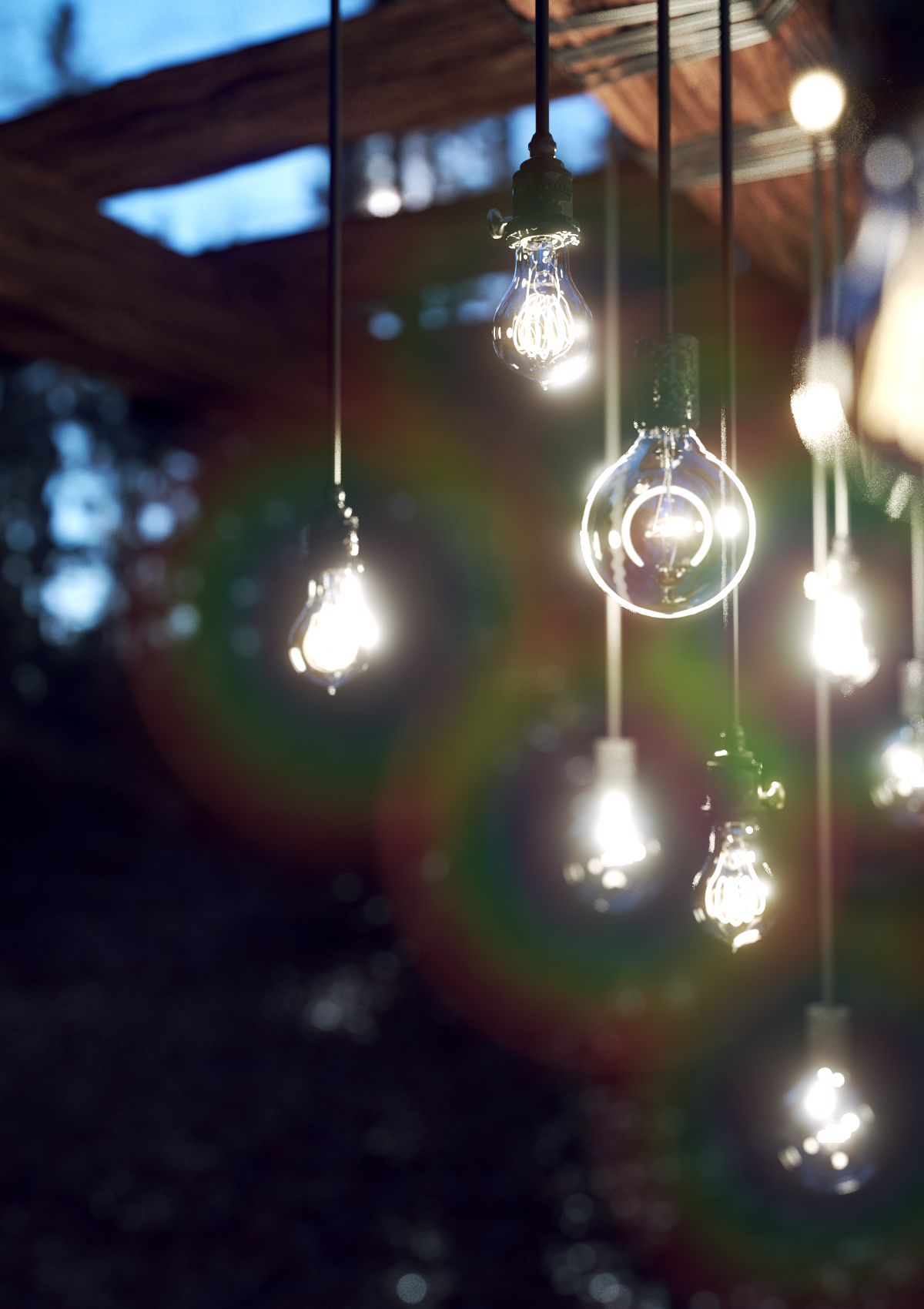

images/download/attachments/38580031/Lenticular_Halo_OuterR_120_InnerR_20.png

Inner Radius = 20, Outer Radius = 120

images/download/attachments/38580031/Lenticular_Halo_OuterR_120_InnerR_40.png

Inner Radius = 40, Outer Radius = 120

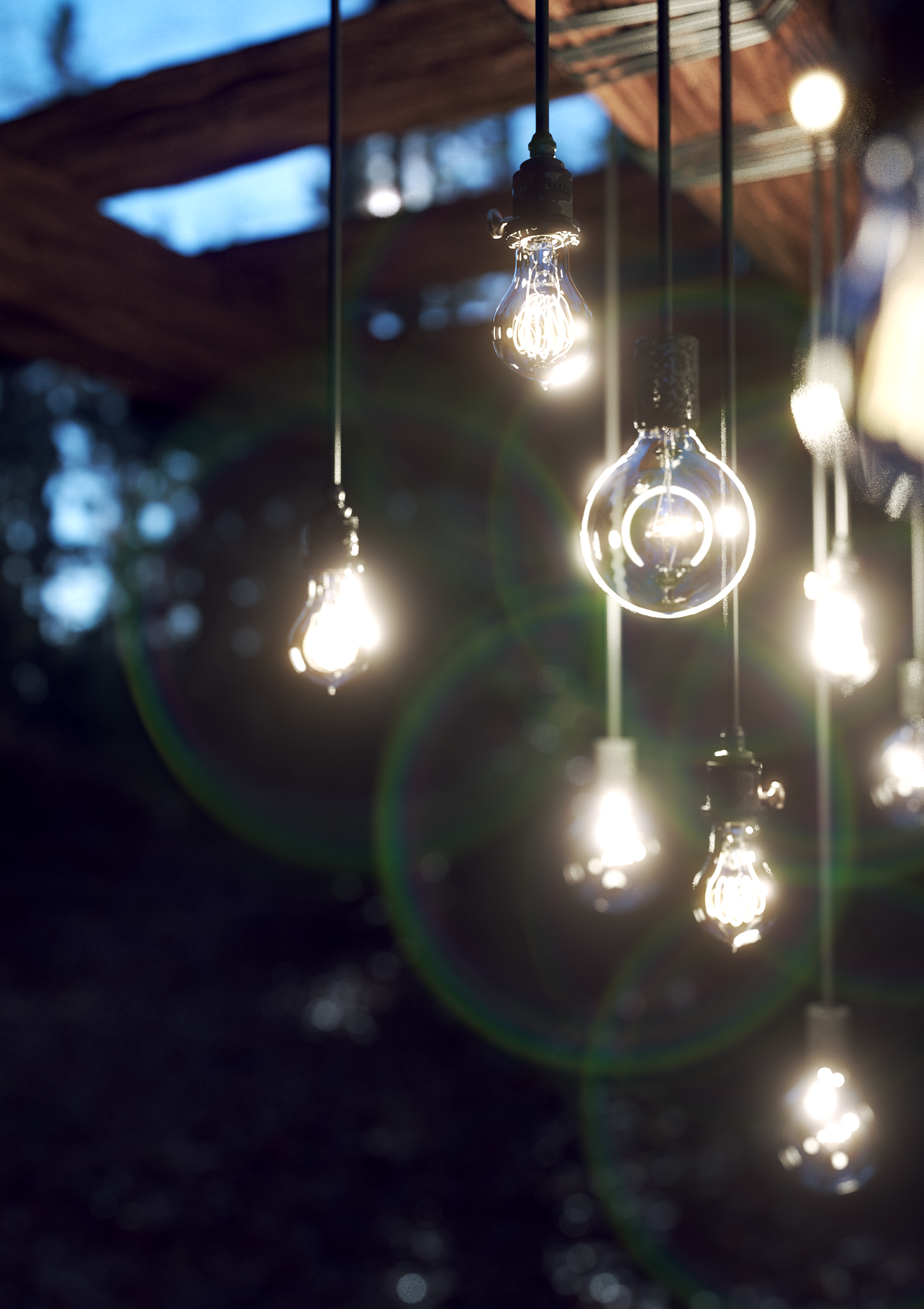

images/download/attachments/38580031/Lenticular_Halo_OuterR_120_InnerR_80.png

Inner Radius = 80, Outer Radius = 120

Mix Parameters

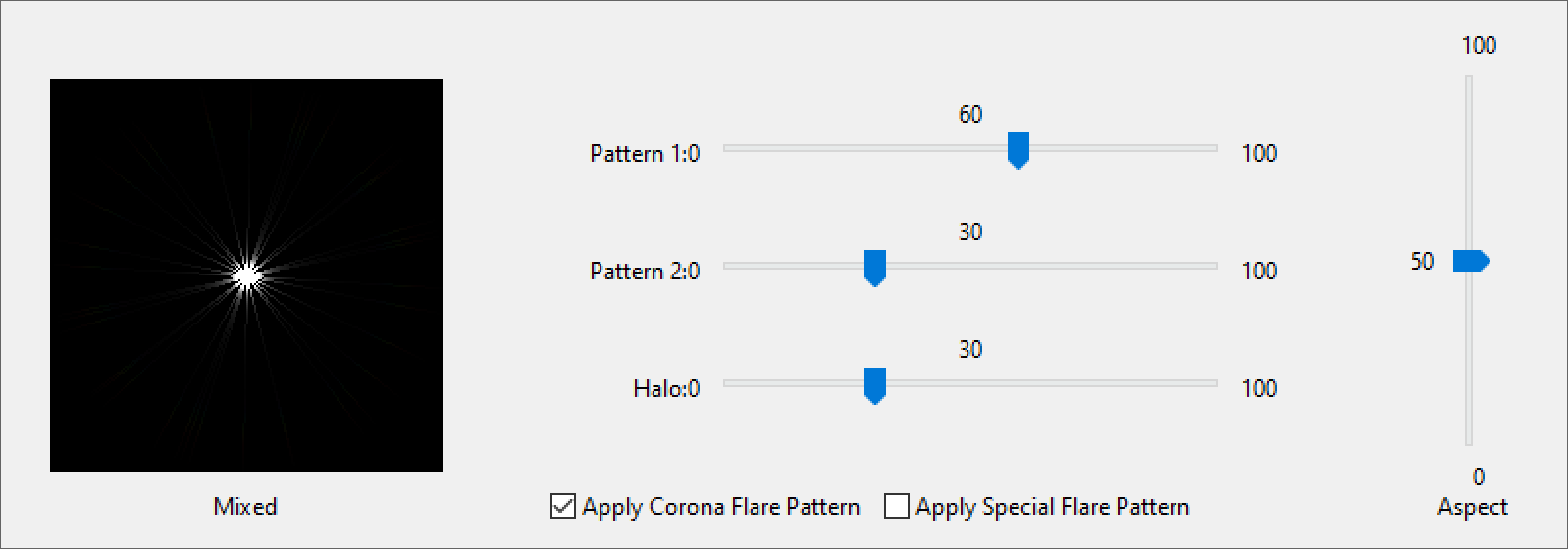

images/download/attachments/38580031/LensEffectsUI_Mix_V01.png

The Mix parameters control how the Lens Parameters mix together into the final Filter kernel.

Pattern 1 – Sets the percentage Radial Symmetric Pattern 1 is mixed with the final Filter kernel.

Pattern 2 – Sets the percentage Radial Symmetric Pattern 2 is mixed with the final Filter kernel

Halo – Sets the percentage the Lenticular Halo has on the final Filter kernel.

Aspect – Determines the Aspect Ratio of the final Filter kernel.

Apply Corona Flare Pattern – Enables filtering of the kernel with the Corona Flare Pattern.

Apply Special Flare Pattern – Enables filtering of the kernel with the Special Flare Pattern.

Click here to expand the Special Flare Lines Pattern Example

The following examples shows how lens parameters can be mixed together to achieve a final filter kernel.

images/download/attachments/38580031/Corona_Flare_Line_Pattern_Lines_5_Diametric_on_Halo_0.png

Apply Corona Flare Pattern is on, Halo = 0, Diametric is on, Number of Lines = 5

images/download/attachments/38580031/Special_Flare_Lines_Pattern_Lines_10_Range_40_Rays_6_Halo_0.png

Apply Special Flare Pattern is on, Halo = 0, Number of Lines = 10, Range = 40, Ray Pattern = 6

images/download/attachments/38580031/Example_1_and_Example_2_Halo_0.png

Apply Corona Flare Pattern is on, Apply Special Flare Pattern is on, Halo = 0, Number of Lines = 10, Range = 40, Ray Pattern = 6

images/download/attachments/38580031/Example_1_and_Example_2_Halo_35.png

Apply Corona Flare Pattern is on, Apply Special Flare Pattern is on, Halo = 35, Number of Lines = 10, Range = 40, Ray Pattern = 6

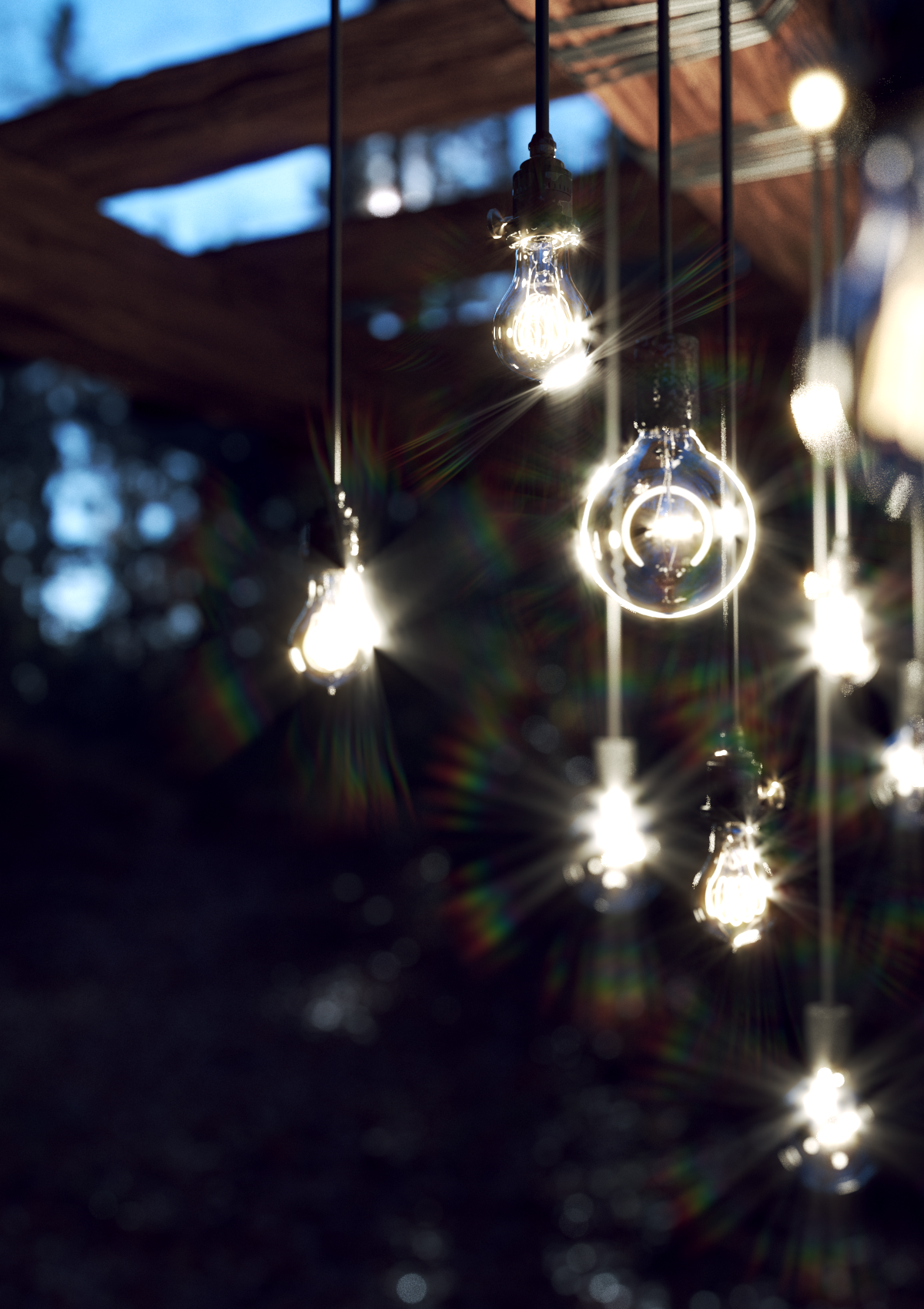

images/download/attachments/38580031/Example_1_and_Example_2_Halo_70.png

Apply Corona Flare Pattern is on, Apply Special Flare Pattern is on, Halo = 70 Number of Lines = 10, Range = 40, Ray Pattern = 6
