Chaos Vantage Toolbar

This page provides information on the Chaos Vantage toolbar integrated in V-Ray for 3ds Max.

Overview

Chaos V-Ray provides a Chaos Vantage toolbar with a few handy and useful tools that enhance the user experience and workflow between V-Ray for 3ds Max and Chaos Vantage. The toolbar is only visible if a Chaos Vantage installation is present.

Among the tools it provides are Live Link, export and send .vrscenes from 3ds Max to Chaos Vantage, as well as import changes from Chaos Vantage to 3ds Max.

The Live Link feature makes it possible to instantly see changes made in V-Ray for 3ds Max without the need to export and import .vrscenes in Chaos Vantage.

images/download/attachments/68951365/Max2021_VRay5_Update1_ChaosVantage_toolbar.png


Toolbar Functions

Button

Description

images/download/thumbnails/68951365/Max2021_VRay5_Update1_ChaosVantage_InitiateLiveLink.png

Initiates a Live Link session between 3ds Max and Chaos Vantage. For more information on how to initiate a Live Link, see theInitiate Live Link to Chaos Vantagepage.

images/download/thumbnails/68951365/Max2021_VRay5_Update1_ChaosVantage_Export_and_Send_CurrentScene.png

Exports and sends the current scene as static .vrscene to Chaos Vantage. For more information, see the Export and Send as .VRScene to Chaos Vantage Script page.

images/download/thumbnails/68951365/Max2021_VRay5_Update1_ChaosVantage_Export_and_Send_CurrentAnimation.png

Exports and sends the current animation range as .vrscene to Chaos Vantage. For more information, see the Export and Send as .VRScene to Chaos Vantage Script page.

images/download/thumbnails/68951365/Max2021_VRay5_Update1_ChaosVantage_ImportChanges.png

Opens Imports changes from Chaos Vantage dialog. For more information, see the Import Changes from Chaos Vantage Script page.

images/download/thumbnails/68951365/VantageToolbar_VantageLinkAnimDialog.png

Renders animation with Chaos Vantage. For more information, see the Render Animation with Chaos Vantage Script page.

images/download/thumbnails/68951365/VantageToolbar_VantageLinkAnim.png

Renders animation with Chaos Vantage, using Chaos Vantage UI. For more information, see the Render Animation with Chaos Vantage Script page.

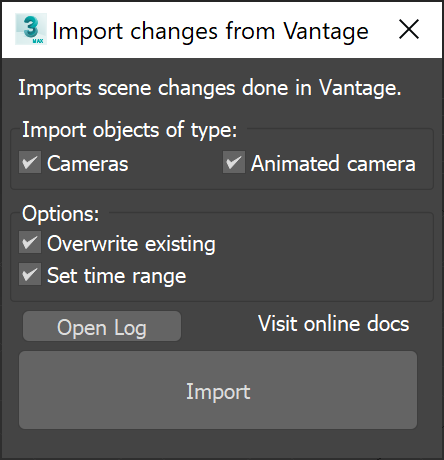

Imports changes from Chaos Vantage dialog

Cameras – When enabled, camera viewpoints are imported.

Animated camera – When enabled, the animated camera tracks from Chaos Vantage are imported as an animated camera.

Overwrite existing – When enabled, all existing objects in the 3ds Max scene are overwritten with the ones from Chaos Vantage.

Set time range – When enabled, the current time range is adjusted to match the animation length from Chaos Vantage.

Open Log – Opens the log listing the actions and processes executed by the script. Useful for debugging the scene if there is an issue. Default location is C:\Users\USER_NAME\AppData\Local\Autodesk\3dsMax\MAXVERSION - 64bit\ENU\scripts

Visit online docs – Opens Chaos online documentation on Importing Changes from Chaos Vantage Script.

Import – Opens a browse window to specify a Vantage Scene file (.vantage) to import.

images/download/attachments/68951365/Max2021_VRay5_Update1_ChaosVantage_Import_Chamges_dialog.png
