VRayMetalness

This page gives an overview of the V-Ray Metalness Render Element.

Overview

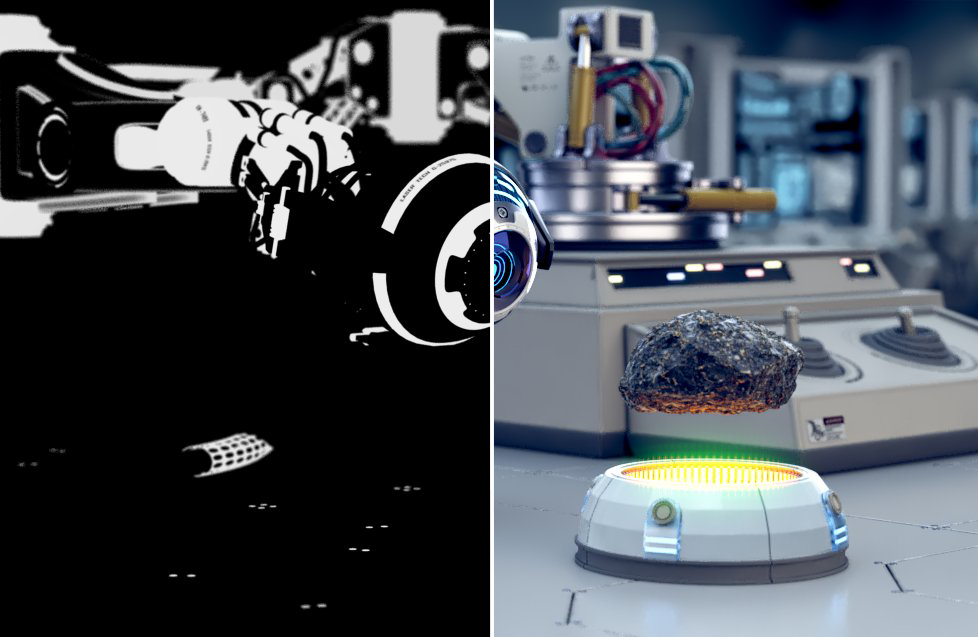

The Metalness Render Element shows areas, where a V-Ray Material, with Metalness is applied. The Metalness values are baked into an image, where black corresponds to 0 and white - to 1. The image created can be used as a metalness mask when creating PBR shaders.

Note that values between 0 and 1 give an unrealistic metalness effect. They can be used creatively and for smooth transitions from a metal to a non-metal material on the same geometry. For more information on metalness and it's role when creating PRB shaders, visit Understanding Metalness.UI Path: ||Render Setup window|| > Render Elements tab...

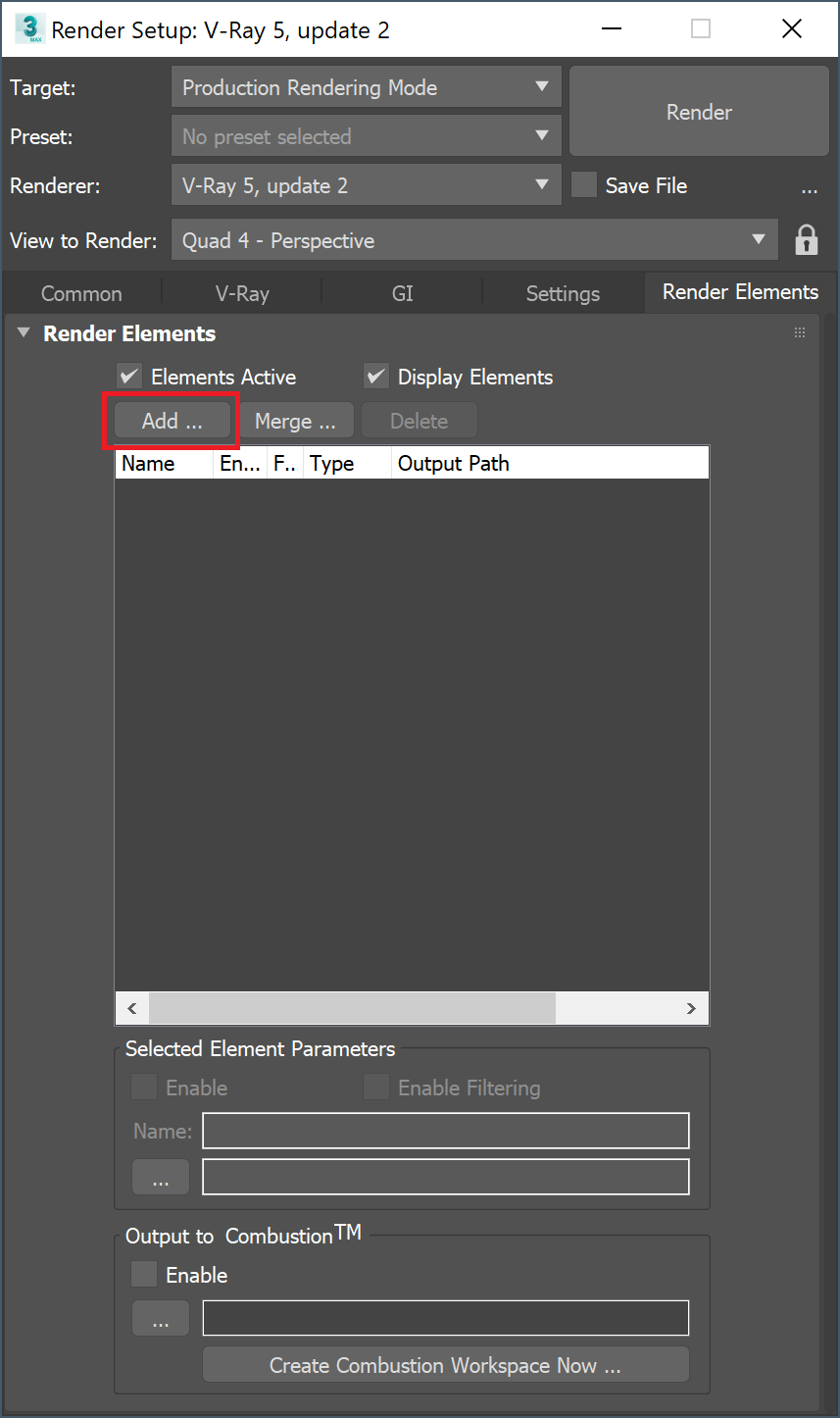

||Render Setup window|| > Render Elements tab > Add button > VRayMetalness

images/download/attachments/79499392/max2022_52010_RE_add.png

images/download/attachments/79499392/LaserScanner_compare.png

Parameters

This render element is enabled through the Render Elements tab of the Render Setup window in 3ds Max and displays its parameters in a rollout at the bottom of the window:

VRayVFB – When enabled, the render element appears in the V-Ray Frame Buffer.

Deep output – Specifies whether to include this render element in deep images.

images/download/attachments/79499392/max2022_52010_metalnessParam.png
