VRaySun

This page describes the use of V-Ray's physically accurate sun and sky system.

Overview

The VRaySun and VRaySky are special features which are provided by the V-Ray renderer. Developed to work together, the VRaySun and VRaySky reproduce the real-life Sun and Sky environment of the Earth. Both are coded so that they change their appearance depending on the direction of the VRaySun. Refer to the VRaySky page for more details about the texture.

The V-Ray Sun and Sky are based largely on the model presented in [ 1 ]. For a more complete list of references, please see the References and links section.

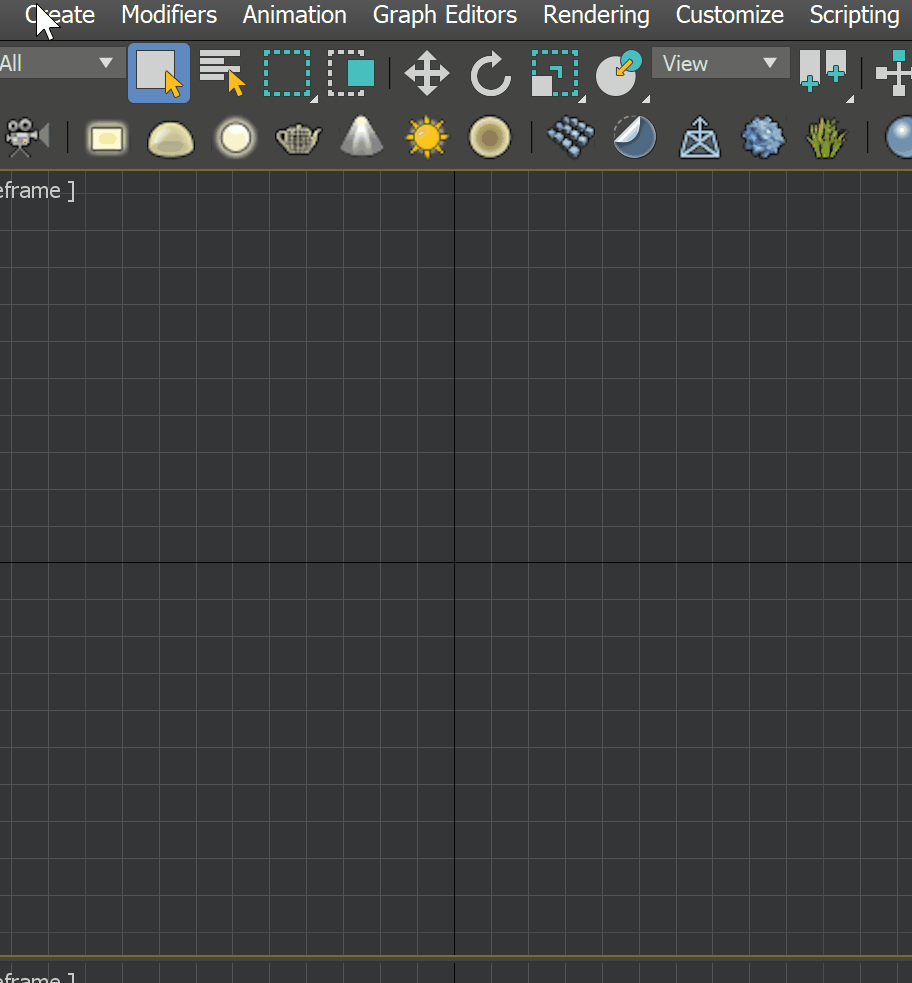

UI Path: ||Create menu|| > Lights > V-Ray...

||Create menu|| > Lights > V-Ray > V-Ray Sun >
click and drag in a viewport

images/download/attachments/60098349/max2022_VRay5.2_VRaySun_location.gif

||V-Ray Toolbar|| > V-Ray Sun button > Click and drag in a viewport

images/download/attachments/60098349/max2016_34002_sunLight_toolbar.png

||Command panel|| > Create tab > Lights > Choose V-Ray from dropdown > VRaySun > click and drag in a viewport

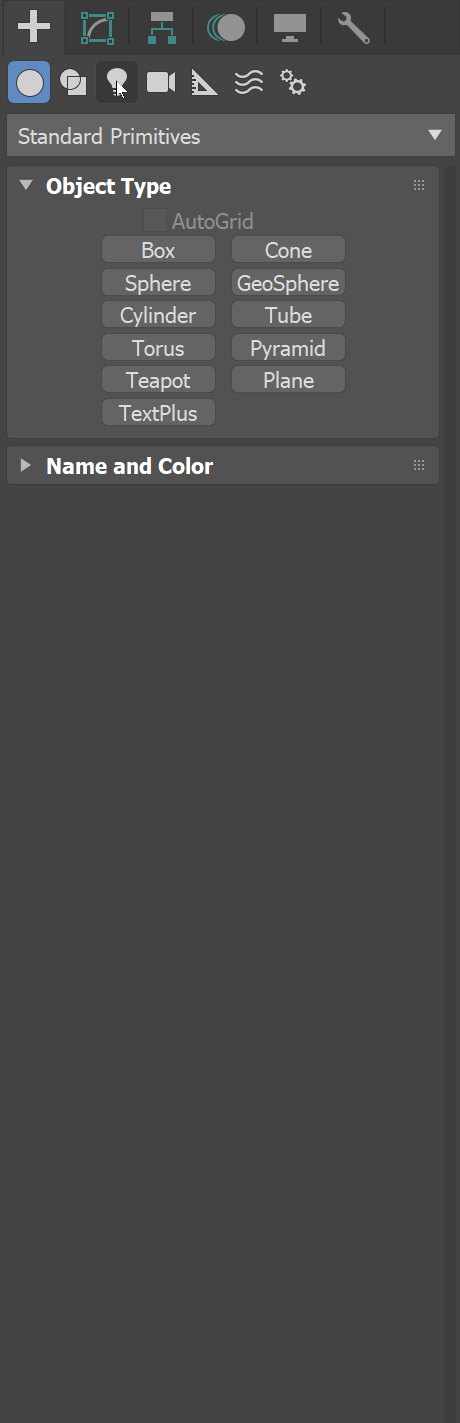

images/download/attachments/60098349/Max2021_Vray5_LightsSUN.gif

images/download/attachments/60098349/tamas-medve-caribbean-tongue.jpg
Image courtesy of Tamas Medve

Example: Direction of the VRaySun Light

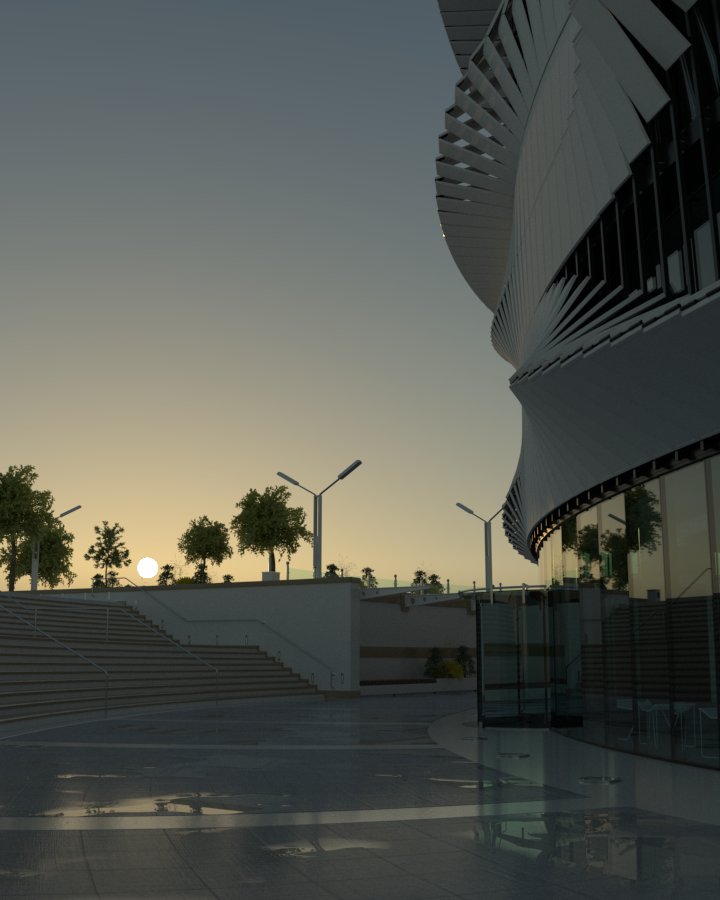

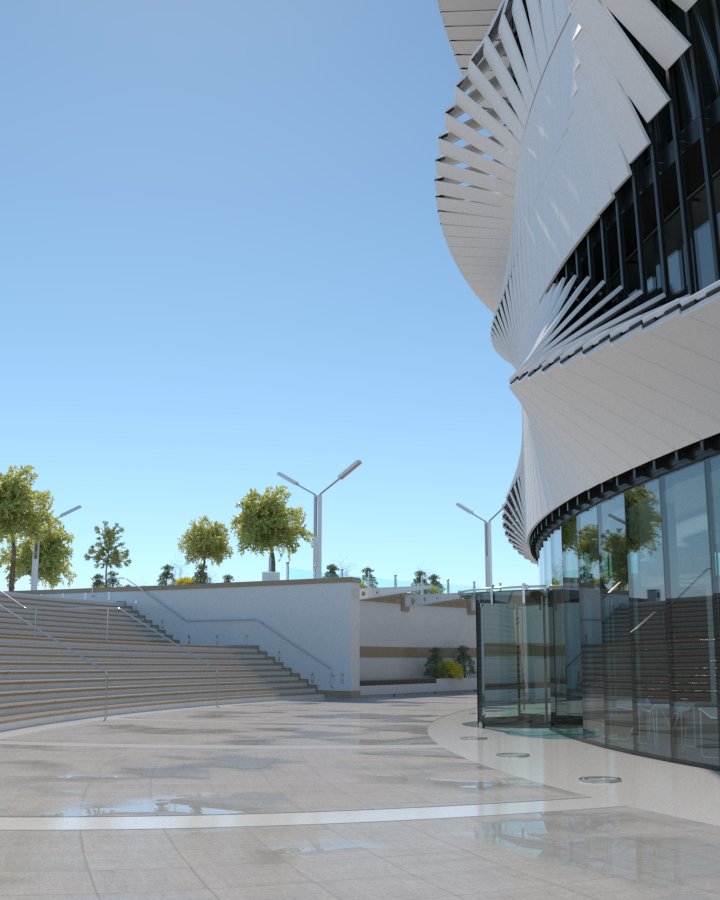

This example demonstrates the effect of the sun direction. The Sun is positioned such as its rays hit the ground at certain degrees. Note how in addition to the scene brightness, the sun position also changes the appearance of the sky and the sun light color.

images/download/attachments/60098349/max2020_50001_SunSky_5Degrees.jpg

5 degrees

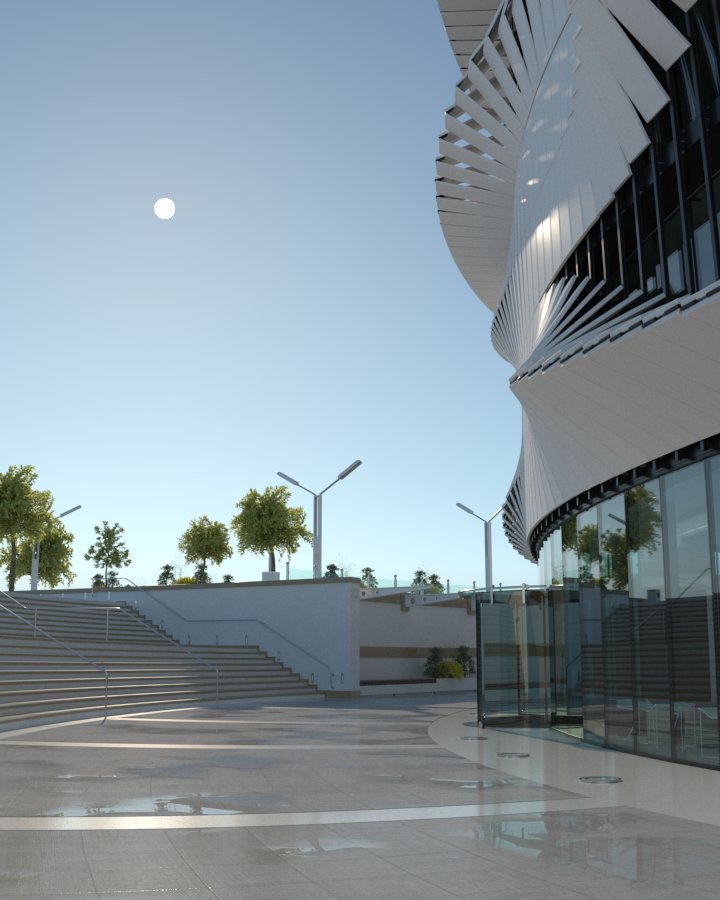

images/download/attachments/60098349/max2020_50001_SunSky_25Degrees.jpg

25 degrees

images/download/attachments/60098349/max2020_50001_SunSky_45Degrees.jpg

45 degrees

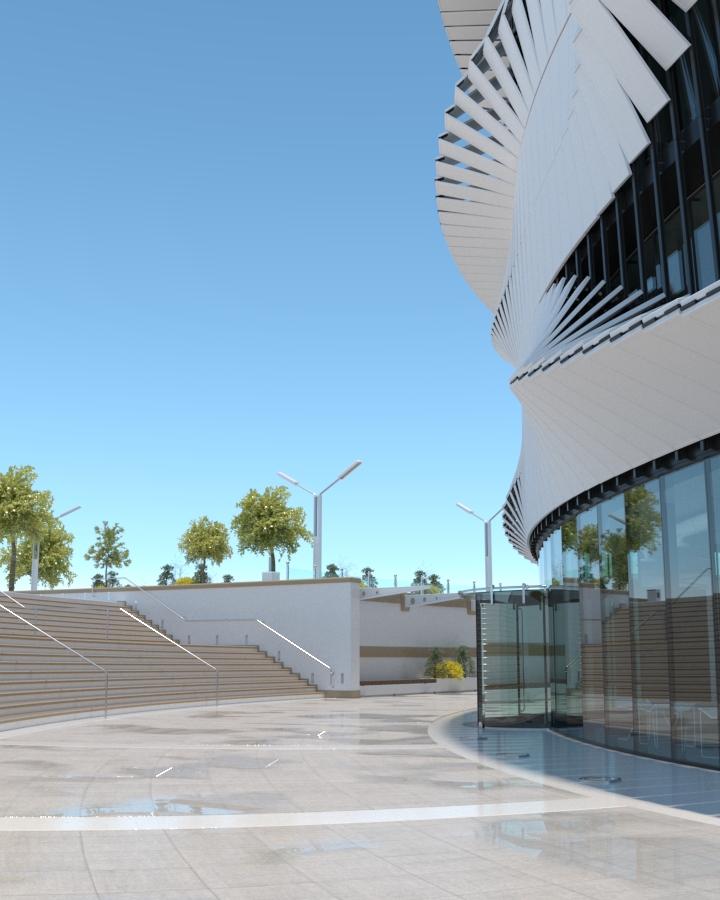

images/download/attachments/60098349/max2020_50001_90Degrees_%282%29.jpg

90 degrees

590

Sun Parameters

You can also specify the VRaySun as the sun type inside a 3ds Max Daylight system.

Enabled – Turns on and off the sun light.

Intensity multiplier1 – An intensity multiplier for the VRaySun. Since the sun is very bright by default, you can use this parameter to reduce its effect.

Size multiplier – Controls the visible size of the sun. This affects the appearance of the sun disc as seen by the camera and reflections, as well as the blurriness of the sun shadows. For more information, see The Size Multiplier Parameter example below.

Filter color – Changes the color of the sun and depends on the Color mode parameter.

Color mode – Affects the way the color in the Filter color parameter affects the color of the sun.

filter – Shifts the hue of the V-Ray Sun and Sky system towards the color specified in the Filter color field.
direct
– Sets the color of the V-Ray Sun to match the color in the Filter Color parameter. In this case the intensity of the light does not depend on the V-Ray Sun's position in the sky and is controlled through the intensity multiplier.
override
– Sets the color of the V-Ray Sun to match the color in the Filter Color parameter but the intensity of the light still depends on the V-Ray Sun's position in the sky.

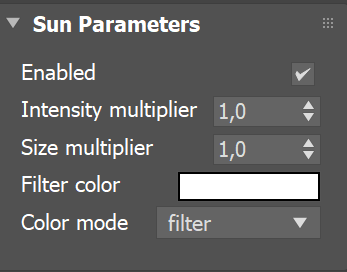

images/download/attachments/60098349/Max2020_VRay5_VRaySunAndSky_Sun_rollout.png

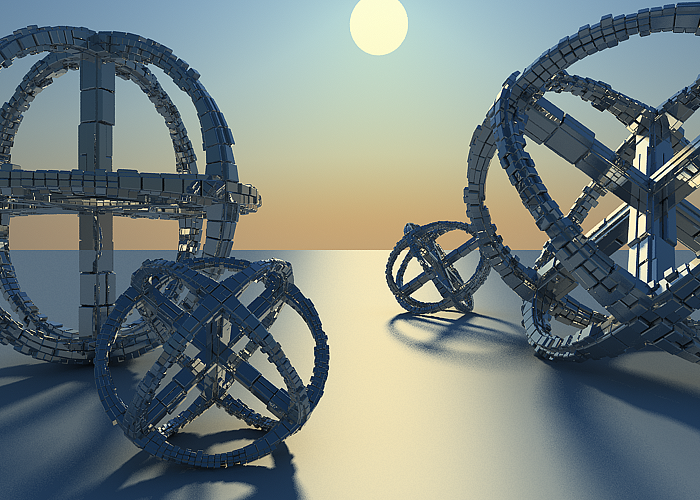

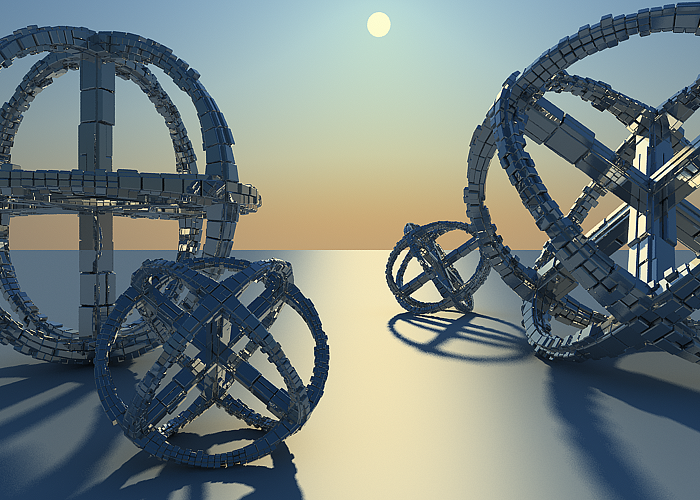

Example: The Size Multiplier Parameter


This example demonstrates the effect of the Size multiplier parameter. Notice how changes in this parameter affect both the visible sun size and the shadow softness (however overall illumination strength remains the same).

Enabled: on, Turbidity: 3.0, Intensity multiplier: 0.01

images/download/attachments/60098349/SunAndSky_18.png

Size multiplier is 4.0

images/download/attachments/60098349/SunAndSky_19.png

Size multiplier is 10.0

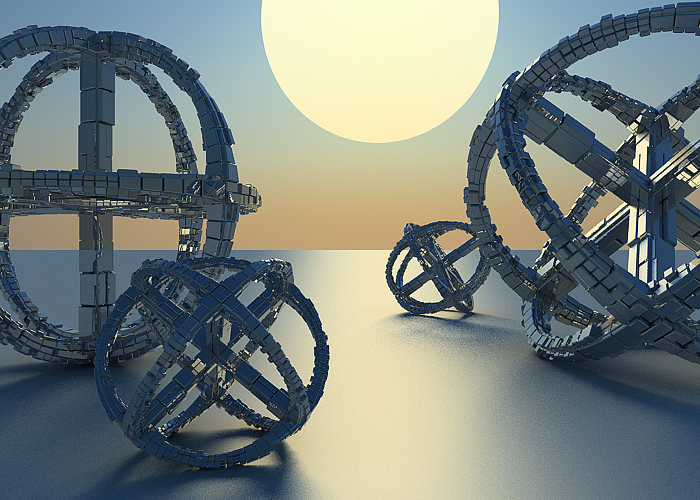

images/download/attachments/60098349/SunAndSky_20.png

Size multiplier is 40.0

440

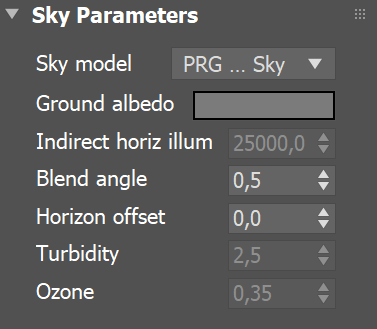

Sky Parameters

Sky model – Specifies the procedural model that is used to generate the VRaySky texture.

Hosek et al. – The VRaySky procedural texture is generated based on the Hosek et al. method.
Preetham et al. – The VRaySky procedural texture is generated based on the Preetham et al. method.
CIE Clear – The VRaySky procedural texture is generated based on the CIE method for clear sky.
CIE Overcast – The VRaySky procedural texture is generated based on the CIE method for cloudy sky.
PRG Clear Sky - The VRaySky procedural texture is generated based on the PRG Clear Sky method which has enhanced sunrise and sunset sky.

Ground albedo – Changes the color of the ground.

Indirect horiz. illum. – Specifies the intensity (in lx) of the illumination on horizontal surfaces coming from the sky.

Blend angle – Controls the size of the gradient formed by VRaySky between the horizon and the actual sky.

Horizon offset – Offsets the horizon from the default position (the absolute horizon).

Turbidity – Determines the amount of dust in the air and affects the color of the sun and sky. Smaller values produce a clear and blue sky and sun as you get in the country, while larger values make them yellow and orange as, for example, in a big city. For more information, see The Turbidity Parameter example below.

Ozone – Affects the color of the sun light. Available in the range between 0.0 and 1.0. Smaller values make the sunlight more yellow, larger values make it blue. For more information, see The Ozone Value example below.

images/download/attachments/60098349/Max2020_VRay5_Update2_VRaySunAndSky_Sky_rollout.png

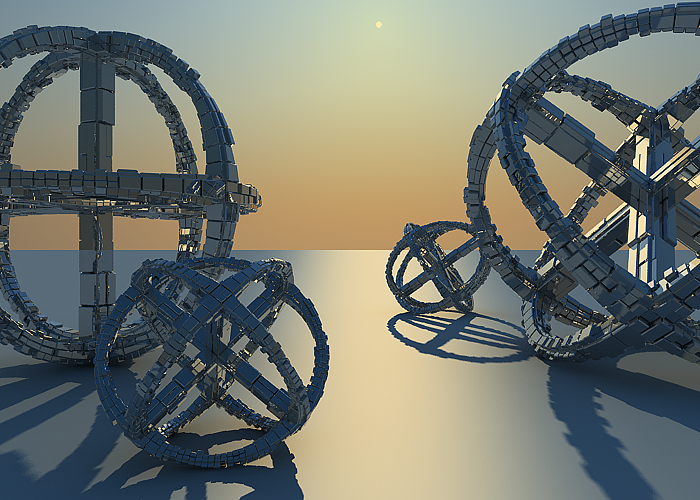

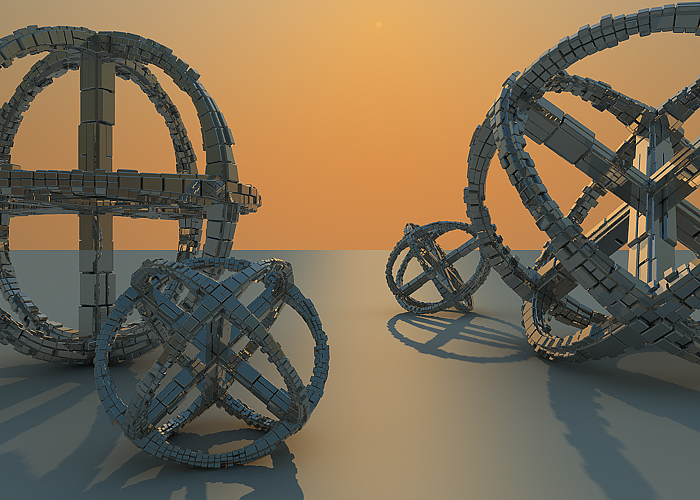

Example: The Turbidity Parameter


This example demonstrates the effect of the Turbidity parameter. Generally, this controls the amount of dust particles in the air. Notice how larger values cause the sun and the sky to become yellowish while smaller values make the sky clear.

Enabled: on, Intensity multiplier: 0.01, Size multiplier: 1.0

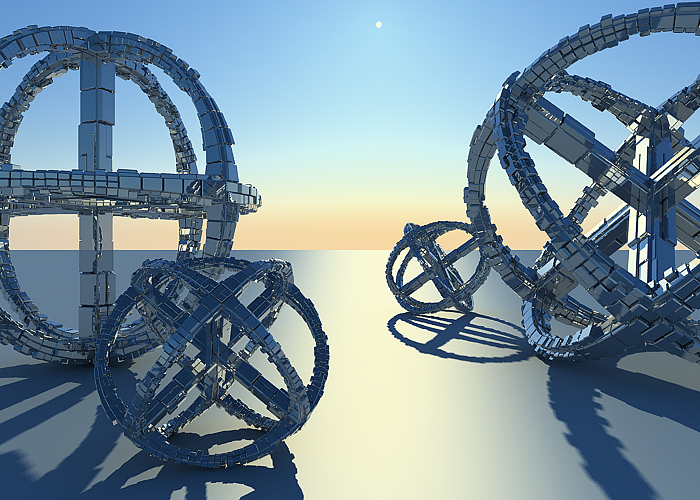

images/download/attachments/60098349/SunAndSky_06.png

Turbidity is 2.0

images/download/attachments/60098349/SunAndSky_07.png

Turbidity is 4.0

images/download/attachments/60098349/SunAndSky_08.png

Turbidity is 8.0

28

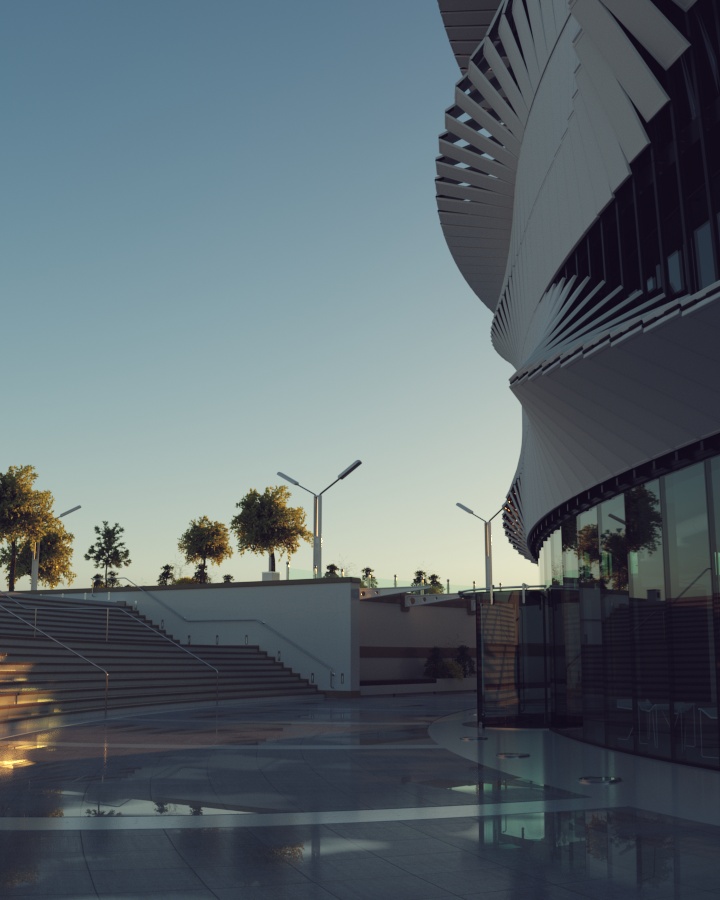

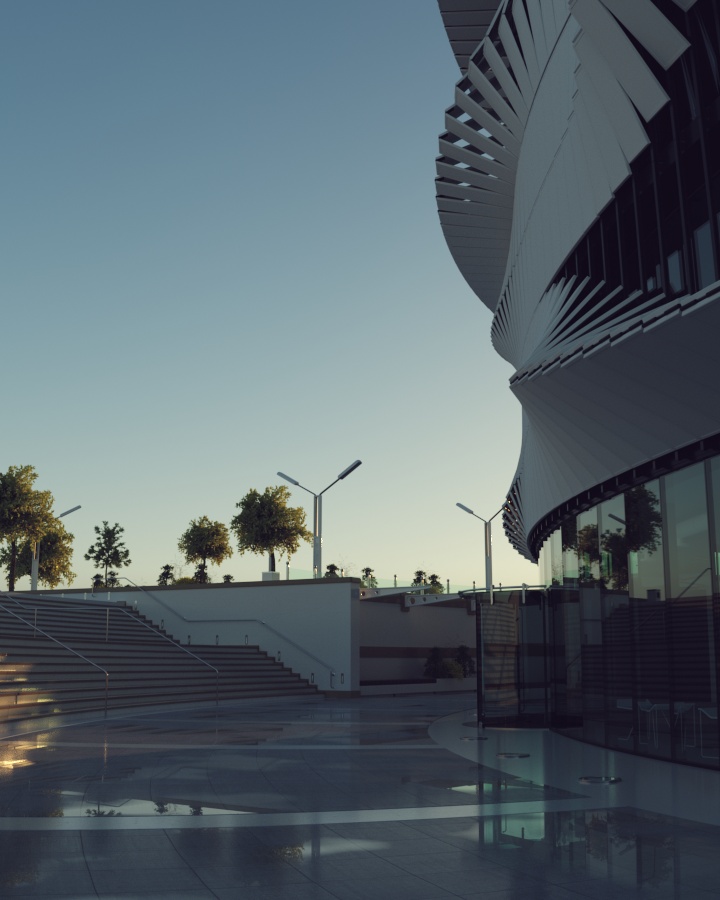

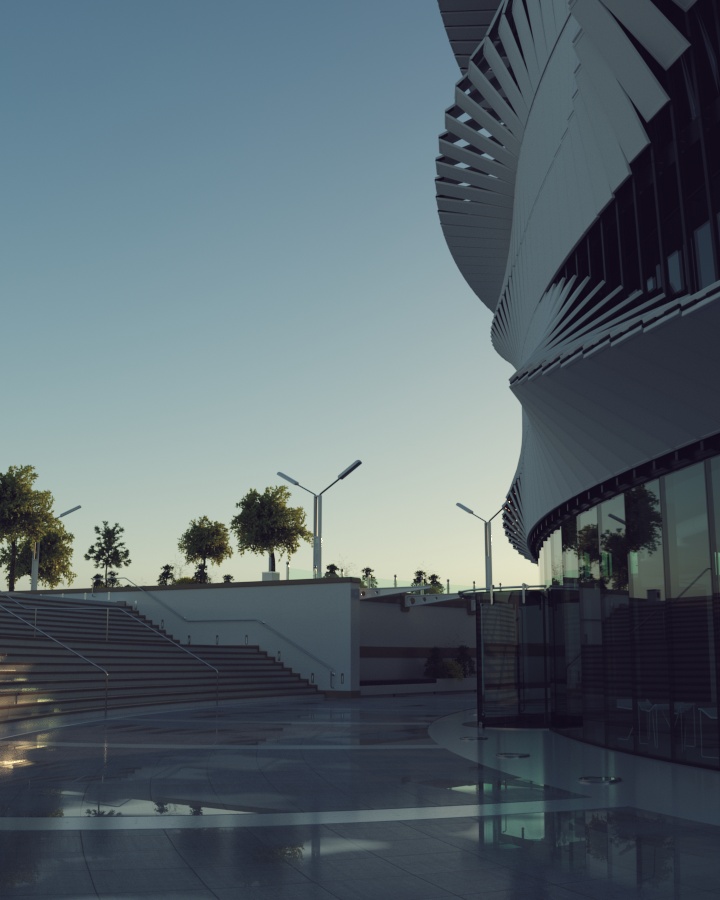

Example: Ozone Value

The Ozone parameter affects only the color of the light emitted by the sun. Higher values cause the color mapping mode to change. This example demonstrates the looks achieved with several different color mapping modes. See also the section on Color mapping for more details.

Enabled: on, Turbidity: 2.0, Intensity multiplier: 1.0, Size multiplier: 1.0.

images/download/attachments/60098349/max2020_50001_Ozone_0.jpg

Ozone: 0.0

images/download/attachments/60098349/max2020_50001_Ozone_05.jpg

Ozone: 0.5

images/download/attachments/60098349/max2020_50001_Ozone_1.jpg

Ozone: 1.0

Options

Exclude – Excludes objects from illumination/shadow casting for the sun light.

Invisible – When enabled , makes the sun invisible, both to the camera and to reflections. This is useful to prevent bright speckles on glossy surfaces where a ray with low probability hits the extremely bright sun disk.

Affect diffuse – Determines whether the VRaySun is affecting the diffuse properties of the materials.

Affect specular – Determines whether the VRaySun is affecting the specular of the materials. The multiplier controls the suns contribution to specular reflections.

Affect atmospherics2 – Specifies whether the light influences the atmospheric effects in the scene. The value determines the amount of involvement.

Cast atmospheric shadows – When enabled, the atmospheric effects in the scene cast shadows.

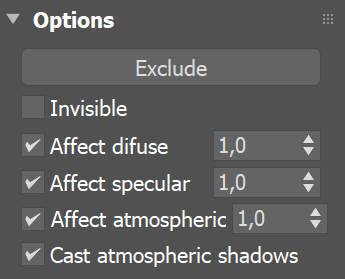

images/download/attachments/60098349/Max2022_VRay5_Update2.1_VRaySun_Options.png

Sampling

Shadow bias – Moves the shadow toward or away from the shadow-casting object (or objects). Higher values move the shadow toward the object(s), while lower values move it away. If this value is too extreme, shadows can "leak" through places they shouldn't or "detach" from an object. Other effects from extreme values include moire patterns, out-of-place dark areas on surfaces, and shadows not appearing at all in the rendering. For more information, see The Shadow Bias example below.

Photon emit radius – Determines the radius of the area where photons would be shot. This area is represented by the green cylinder around the Sun's ray vector. This parameter has effect when photons are used in caustics. See the Photon Emission Radius example for more information.

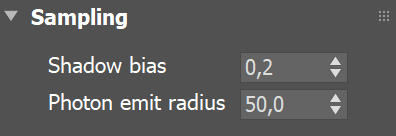

images/download/attachments/60098349/Max2020_VRay5_VRaySunAndSky_Sampling_rollout.png

Example: Shadow Bias


Enabled: on, Turbidity: 2.0, Intensity multiplier: 1.0, Size multiplier: 1.0. Notice how the shadows move towards the center of the render, that is towards the shadow casting object when the value is higher.

images/download/attachments/60098349/max2020_50001_ShadowBias_0.jpg

Shadow Bias 0.0

images/download/attachments/60098349/max2020_50001_ShadowBias_7.jpg

Shadow Bias 7.0

images/download/attachments/60098349/max2020_50001_ShadowBias_15.jpg

Shadow Bias 15.0

images/download/attachments/60098349/max2020_50001_ShadowBias_30.jpg

Shadow Bias 30.0

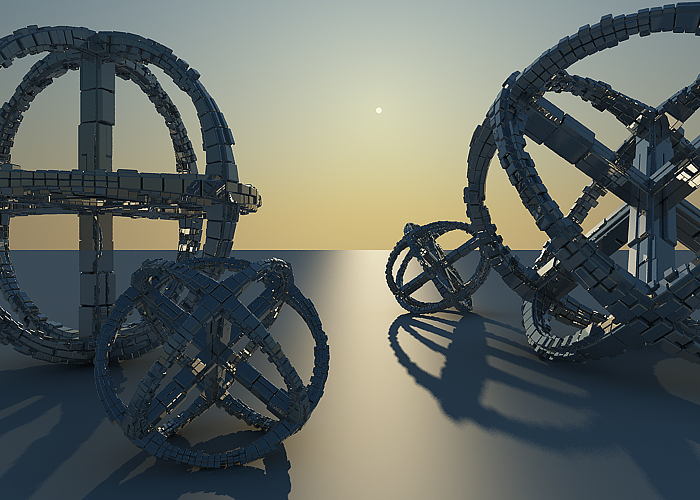

Example: VRay Sun and Sky with Different Color Mapping Types

In addition to the parameters of the sun and sky, their appearance also depends on the selected color mapping mode. This example demonstrates the looks achieved with several different color mapping modes. See also the section on Color mapping for more details.

Enabled: on, Height Z: 800, Turbidity: 3.0, Intensity multiplier: 0.01, Size multiplier: 1.0

images/download/attachments/60098349/SunAndSky_28.png

Color mapping: Exponential

images/download/attachments/60098349/SunAndSky_29.png

Color mapping: HSV exponential

images/download/attachments/60098349/SunAndSky_30.png

Color mapping: Intensity exponential

Notes

  1. By default, the VRaySun and VRaySky are very bright. In the real world, the average solar irradiance is about 1000 W/m^2 (see the references below). Since the image output in V-Ray is in W/m^2/sr, you will typically find that the average RGB values produces by the sun and the sky are about 200.0-300.0 units. This is quite correct from a physical point of view, but is not enough for a nice image. You can either use Color mapping to bring these values to a smaller range (which is the preferred way) or you can use the Sun intensity multiplier to make the sun and sky less bright. Using the VRayPhysicalCamera with suitable values also produces a correct result without changing the sun and sky parameters.

  2. The Affect atmospherics option has no effect on VRayAerialPerspective as this atmospheric effect only simulates volumetric appearance.
